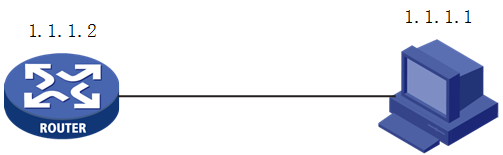

Network Topology
1.1.1.2----1.1.1.1
Problem Description
Upgrade The Software Through BOOTROM
Process Analysis

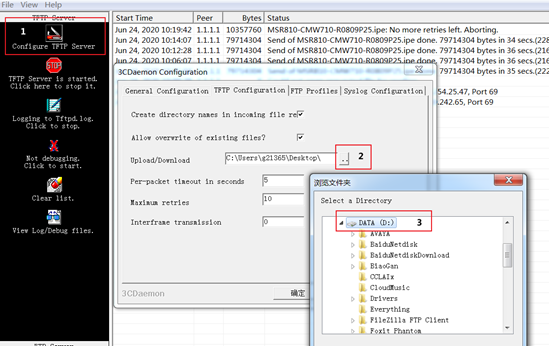

1.
2.
3.
[MSR810]dis version
H3C Comware Software, Version 7.1.064, Release 0707P24
Copyright (c) 2004-2020 New H3C Technologies Co., Ltd. All rights reserved.
H3C MSR810 uptime is 0 weeks, 0 days, 0 hours, 4 minutes
4.
Start to check configuration with next startup configuration file, please wait.........DONE!
This command will reboot the device. Continue? [Y/N]:Y
Now rebooting, please wait...
%Jan 1 00:09:47:099 2011 MSR810 DEV/5/SYSTEM_REBOOT: System is rebooting now.
@
System is starting...
Press Ctrl+D to access BASIC-BOOTWARE MENU
Booting Normal Extended BootWare
****************************************************************************
* *
* H3C MSR810 BootWare, Version 1.61 *
* *
****************************************************************************
Copyright (c) 2004-2019 New H3C Technologies Co., Ltd.
Compiled Date : May 5 2019
CPU ID : 0xa
CPU L1 Cache : 32KB
CPU L2 Cache : 256KB
Memory Type : DDR3 SDRAM
Memory Size : 1024MB
Flash Size : 256MB
PCB Version : 2.0
BootWare Validating...
Press Ctrl+B to access EXTENDED-BOOTWARE MENU...
Password recovery capability is enabled.
Note: The current operating device is flash
Enter < Storage Device Operation > to select device.
==========================
|<1> Boot System |
|<2> Enter Serial SubMenu |
|<3> Enter Ethernet SubMenu |
|<4> File Control |
|<5> Restore to Factory Default Configuration |
|<6> Skip Current System Configuration |
|<7> BootWare Operation Menu |
|<8> Skip Authentication for Console Login |
|<9> Storage Device Operation |
|<0> Reboot |
============================================================================
Ctrl+Z: Access EXTENDED ASSISTANT MENU
Ctrl+C: Display Copyright
Ctrl+F: Format File System
Enter your choice(0-9): 3
==============
|Note:the operating device is flash |
|<1> Download Image Program To SDRAM And Run |
|<2> Update Main Image File |
|<3> Update Backup Image File |
|<4> Download Files(*.*) |
|<5> Modify Ethernet Parameter |
|<0> Exit To Main Menu |
|
============================================================================
Enter your choice(0-5): 5
==========================
|Note: "." = Clear field. |
| "-" = Go to previous field. |
| Ctrl+D = Quit. |
============================================================================
Protocol (FTP or TFTP) :tftp
Load File Name :MSR810-CMW710-R0809P25.ipe :
Target File Name :MSR810-CMW710-R0809P25.ipe :
Server IP Address :1.1.1.2
Local IP Address :1.1.1.1
Subnet Mask :255.255.255.0
Gateway IP Address :1.1.1.2
=================
|Note:the operating device is flash |
|<1> Download Image Program To SDRAM And Run |
|<2> Update Main Image File |
|<3> Update Backup Image File |
|<4> Download Files(*.*) |
|<5> Modify Ethernet Parameter |
|<0> Exit To Main Menu |
|
============================================================================
Enter your choice(0-5): 2
Loading.............................................................................................................................
..............................................................................................................................................
..............................................Done.
79714304 bytes downloaded!
Image file msr810-cmw710-boot-r0809p25.bin is self-decompressing...
Saving file flash:/msr810-cmw710-boot-r0809p25.bin ...................Done.
Image file msr810-cmw710-system-r0809p25.bin is self-decompressing...
Saving file flash:/msr810-cmw710-system-r0809p25.bin
...................................................................................................Done.
==================
|Note:the operating device is flash |
|<1> Download Image Program To SDRAM And Run |
|<2> Update Main Image File |
|<3> Update Backup Image File |
|<4> Download Files(*.*) |
|<5> Modify Ethernet Parameter |
|<0> Exit To Main Menu |
|
============================================================================
Enter your choice(0-5): 0
==========================
|<1> Boot System |
|<2> Enter Serial SubMenu |
|<3> Enter Ethernet SubMenu |
|<4> File Control |
|<5> Restore to Factory Default Configuration |
|<6> Skip Current System Configuration |
|<7> BootWare Operation Menu |
|<8> Skip Authentication for Console Login |
|<9> Storage Device Operation |
|<0> Reboot |
============================================================================
Ctrl+Z: Access EXTENDED ASSISTANT MENU
Ctrl+C: Display Copyright
Ctrl+F: Format File System
Enter your choice(0-9): 1
Loading the main image files...
Loading file flash:/msr810-cmw710-system-r0809p25.bin.......................
.............................................Done.
Loading file flash:/msr810-cmw710-security-r0809p25.bin....Done.
Loading file flash:/msr810-cmw710-voice-r0809p25.bin...Done.
Loading file flash:/msr810-cmw710-data-r0809p25.bin......Done.
Loading file flash:/msr810-cmw710-wifidog-r0809p25.bin...Done.
Loading file flash:/msr810-cmw710-wwd-r0809p25.bin...Done.
Loading file flash:/msr810-cmw710-boot-r0809p25.bin..........Done.
Image file flash:/msr810-cmw710-boot-r0809p25.bin is self-decompressing.....
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
.......................................................................
Done.
System image is starting...
Cryptographic algorithms tests passed.
Line con0 is available.
Press ENTER to get started.
H3C Comware Software, Version 7.1.064, Release 0809P25
Copyright (c) 2004-2020 New H3C Technologies Co., Ltd. All rights reserved.
H3C MSR810 uptime is 0 weeks, 0 days, 0 hours, 3 minutes
Solution
NULL
