SSL VPN combined with multiple VPN instance

2022-03-21 17:53:49 Published
  • 0Followed
  • -1Collected ,408Browsed
fans:0 follow:0

Network Topology

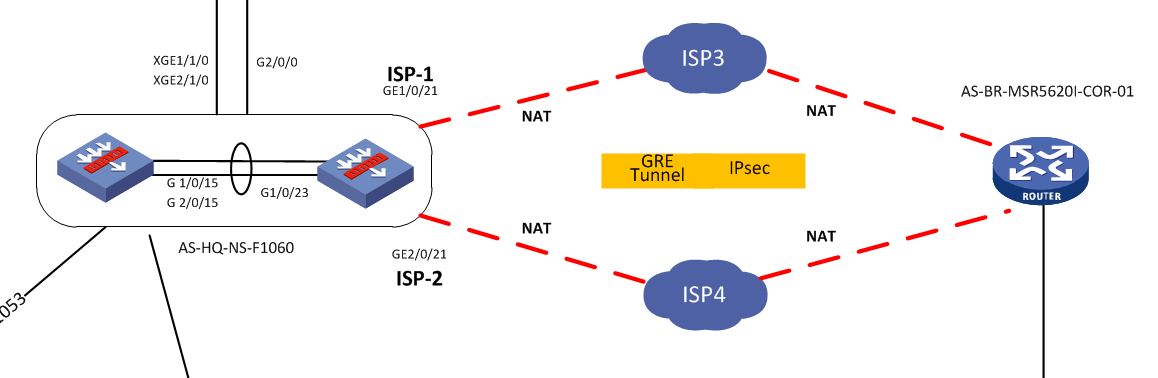

The client has two ISP addresses, two SSL VPN contexts are configured, and remote clients can dial into the SSL VPN through both ISP addresses.


Problem Description

The remote client dials in to sslvpn through the two ISP addresses on the F1060. The two ISP addresses are on the two slots respectively, and the firewall does an IRF. Because SSL VPN traffic can only be encrypted and decrypted in the master slot, after decryption, the routing priority will be directly forwarded from the master slot, resulting in inconsistent round-trip VPN traffic, and accounts dialed in through ISP 2 cannot access intranet resources normally.

Process Analysis

In order to ensure that the traffic entering the firewall from slot 2 is forwarded from slot 2 and is not affected by routing, we adopt the method of dividing VPN instances and bind the two VPN services to the two VRFs. Therefore, different VPNs cannot communicate with each other. Each VRF maintains an independent routing table to ensure that VPN traffic is forwarded in the same slot.

Solution

#

ip vpn-instance sslvpn1

#

ip vpn-instance sslvpn2

#

interface Ten-GigabitEthernet1/1/0.50

 ip binding vpn-instance sslvpn1

 ip address 10.50.50.1 255.255.255.252

 vlan-type dot1q vid 50

#

interface Ten-GigabitEthernet2/1/0.50

 ip binding vpn-instance sslvpn2

 ip address 10.51.51.1 255.255.255.0

 vlan-type dot1q vid 51

#

interface SSLVPN-AC1

 mtu 1800

 ip binding vpn-instance sslvpn1

 ip address 10.100.10.1 255.255.255.0

#

interface SSLVPN-AC2

 mtu 1800

 ip binding vpn-instance sslvpn2

 ip address 10.100.20.1 255.255.255.0

#

security-zone name Trust

import interface SSLVPN-AC1

 import interface SSLVPN-AC2

 import interface Ten-GigabitEthernet1/1/0.50

import interface Ten-GigabitEthernet2/1/0.50

#

ip route-static vpn-instance sslvpn1 10.0.0.0 8 10.50.50.2

 ip route-static vpn-instance sslvpn1 10.26.10.0 24 10.50.50.2

 ip route-static vpn-instance sslvpn1 10.30.10.0 24 10.50.50.2

 ip route-static vpn-instance sslvpn1 10.100.10.0 24 10.50.50.2

 ip route-static vpn-instance sslvpn1 172.16.0.0 24 10.50.50.2

 ip route-static vpn-instance sslvpn1 172.16.10.0 24 10.50.50.2

 ip route-static vpn-instance sslvpn1 192.168.0.0 24 10.50.50.2

 ip route-static vpn-instance sslvpn1 192.168.10.0 24 10.50.50.2

 ip route-static vpn-instance sslvpn2 10.0.0.0 8 10.51.51.2

 ip route-static vpn-instance sslvpn2 10.20.10.0 24 10.51.51.2

 ip route-static vpn-instance sslvpn2 10.26.10.0 24 10.51.51.2

 ip route-static vpn-instance sslvpn2 10.30.10.0 24 10.51.51.2

 ip route-static vpn-instance sslvpn2 10.100.10.0 24 10.51.51.2

 ip route-static vpn-instance sslvpn2 172.16.0.0 24 10.51.51.2

 ip route-static vpn-instance sslvpn2 172.16.10.0 24 10.51.51.2

 ip route-static vpn-instance sslvpn2 192.168.0.0 24 10.51.51.2

 ip route-static vpn-instance sslvpn2 192.168.10.214 32 10.51.51.2

 ip route-static vpn-instance sslvpn2 192.168.10.215 32 10.51.51.2

#

sslvpn ip address-pool sslvpnpool 10.100.10.2 10.100.10.100

sslvpn ip address-pool sslvpnpool2 10.100.20.10 10.100.20.50

#

sslvpn gateway gw

 ip address 1.1.1.1 port 4430

 service enable

#

sslvpn gateway gw1

 ip address 2.2.2.2 port 4430

 service enable

#

sslvpn context ctx2ip

 vpn-instance sslvpn2

 gateway gw1

 ip-tunnel interface SSLVPN-AC2

 ip-tunnel address-pool sslvpnpool2 mask 255.255.255.0

 ip-tunnel log connection-close

 ip-tunnel log packet-drop

 ip-tunnel log address-alloc-release

 logo file download.png

 ip-route-list external

  include 10.26.10.0 255.255.255.0

  include 10.30.10.0 255.255.255.0

  include 10.100.10.0 255.255.255.0

  include 172.16.0.0 255.255.255.0

  include 172.16.10.0 255.255.255.0

  include 192.168.0.0 255.255.255.0

 ip-route-list rtlist

  include 10.0.0.0 255.0.0.0

  include 10.20.10.0 255.255.255.0

  include 10.26.10.0 255.255.255.0

  include 192.168.0.0 255.255.255.0

  include 192.168.10.214 255.255.255.255

  include 192.168.10.215 255.255.255.255

 policy-group external

  filter ip-tunnel acl 3995

  ip-tunnel access-route ip-route-list external

 policy-group resourcegrp

  filter ip-tunnel acl 3994

  ip-tunnel access-route ip-route-list rtlist

 default-policy-group resourcegrp

 log user-login enable

 log resource-access enable filtering brief

 service enable

#

sslvpn context ctxip

 vpn-instance sslvpn1

 gateway gw

 ip-tunnel interface SSLVPN-AC1

 ip-tunnel address-pool sslvpnpool mask 255.255.255.0

 ip-tunnel log connection-close

 ip-tunnel log packet-drop

 ip-tunnel log address-alloc-release

 logo file download.png

 uri-acl external

 ip-route-list external

  include 10.26.10.0 255.255.255.0

  include 10.30.10.0 255.255.255.0

  include 10.100.10.0 255.255.255.0

  include 172.16.0.0 255.255.255.0

  include 172.16.10.0 255.255.255.0

  include 192.168.0.0 255.255.255.0

 ip-route-list rtlist

  include 10.0.0.0 255.0.0.0

  include 10.26.10.0 255.255.255.0

  include 192.168.0.0 255.255.255.0

  include 192.168.10.0 255.255.255.0

 policy-group external

  filter ip-tunnel acl 3013

  ip-tunnel access-route ip-route-list external

 policy-group resourcegrp

  filter ip-tunnel acl 3003

  ip-tunnel access-route ip-route-list rtlist

 default-policy-group resourcegrp

 log user-login enable

 log resource-access enable filtering brief

 service enable

#

security-policy ip

 rule 41 name VPN2-pass

  action pass

  vrf sslvpn2

 rule 40 name VPN-pass

  action pass

  vrf sslvpn1

#

Note: The context, AC port, and intranet resources need to be in the same VRF, and the security policy of action pass needs to be configured.
