F1000 series firewall web synchronization AD server account configuration
- 0 Followed
- 0Collected ，1278Browsed
Network Topology
NOT involved
Problem Description
How to update the AD server account to F1000.
Process Analysis
At present, our firewall does not have a web guide for importing ldap users, so how to import ldap users in the web interface?
Solution

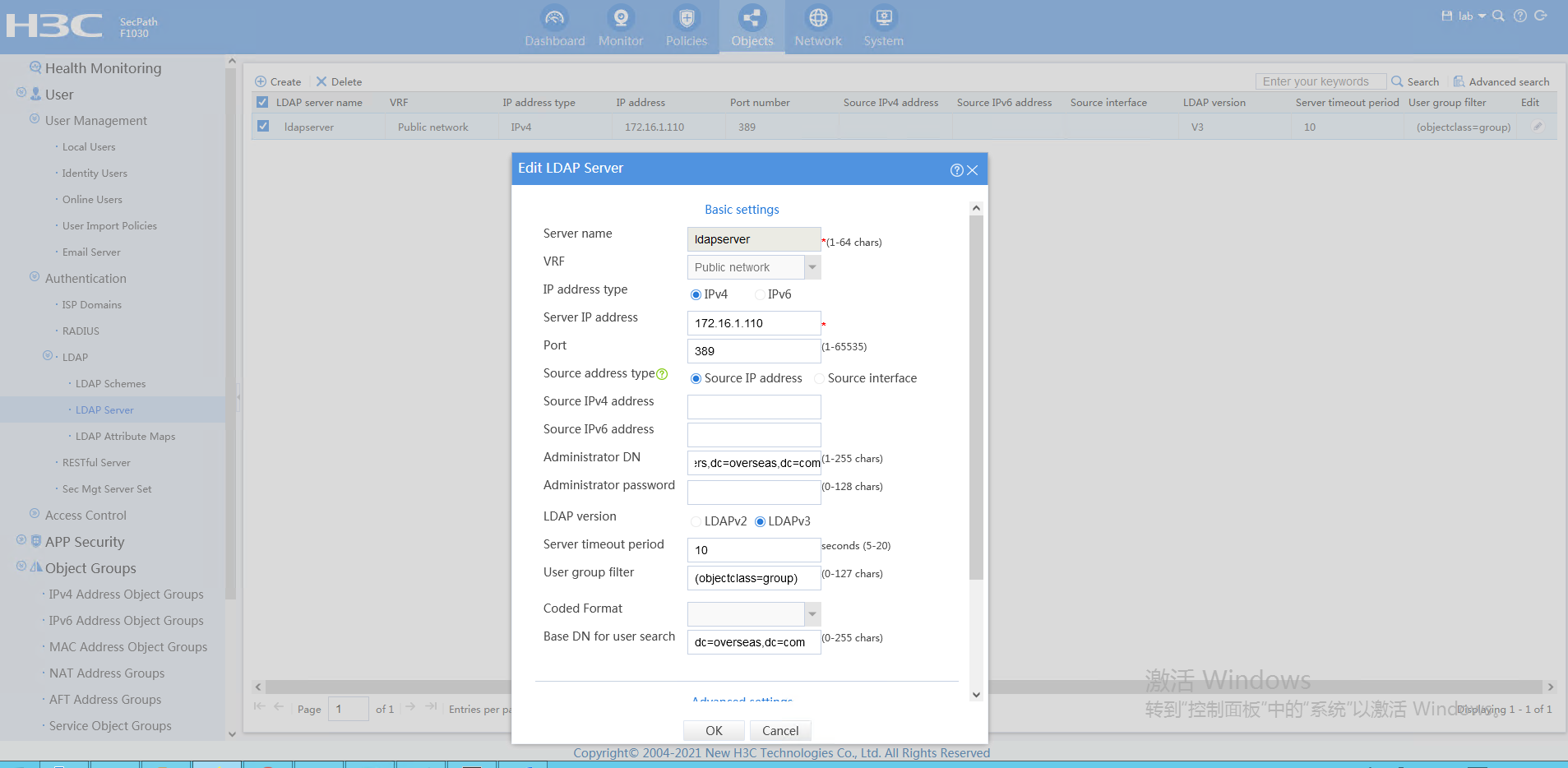

1.Add ldap server, enter required information
Ldap server：172.16.1.110
Administrator DN: cn=administrator,cn=users,dc=overseas,dc=com
Administrator password:h3c.com!
Base DN for user search: dc=overseas,dc=com

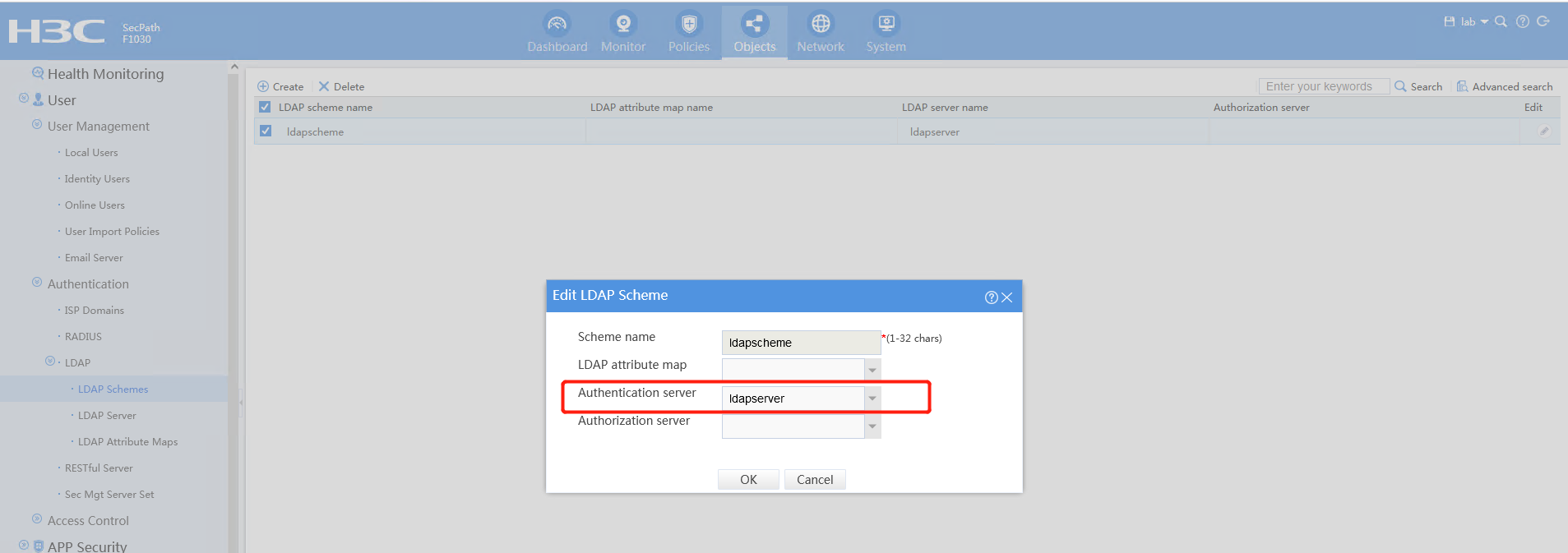

2. Add ldap scheme and select ldap server

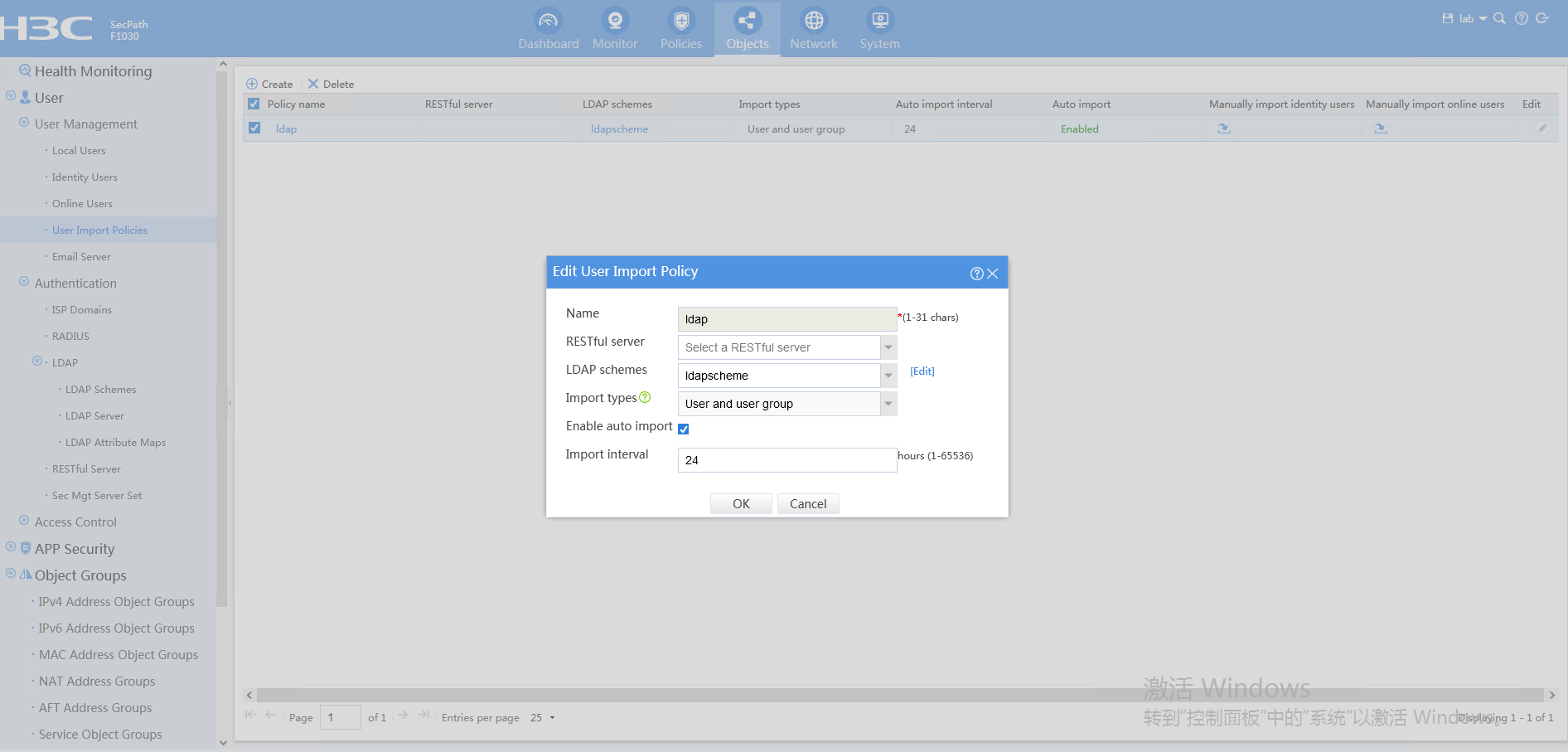

3. Add ldap type user import strategy, select ldap scheme

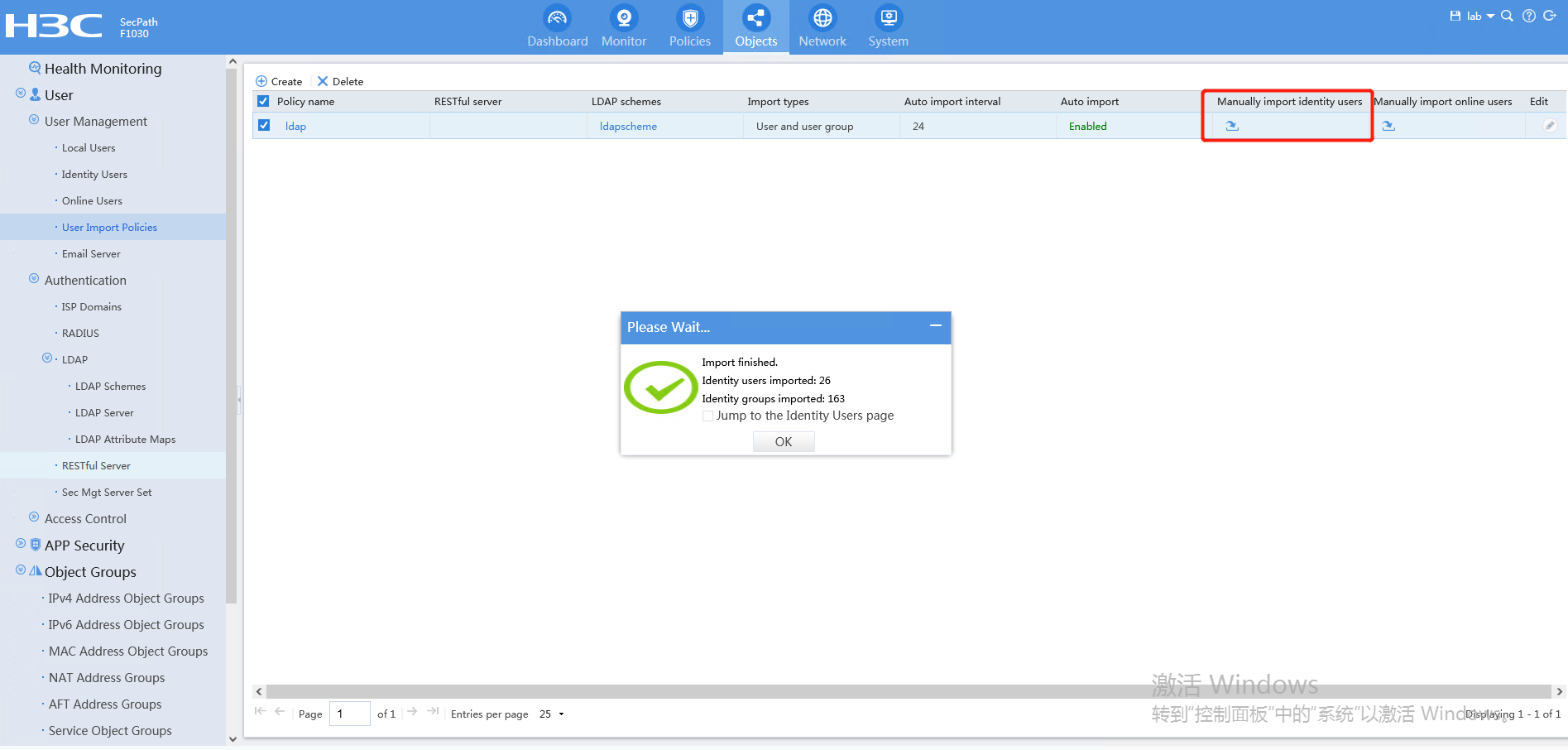

4. Manually click import in the synchronization policy to
import the ldap user into the firewall

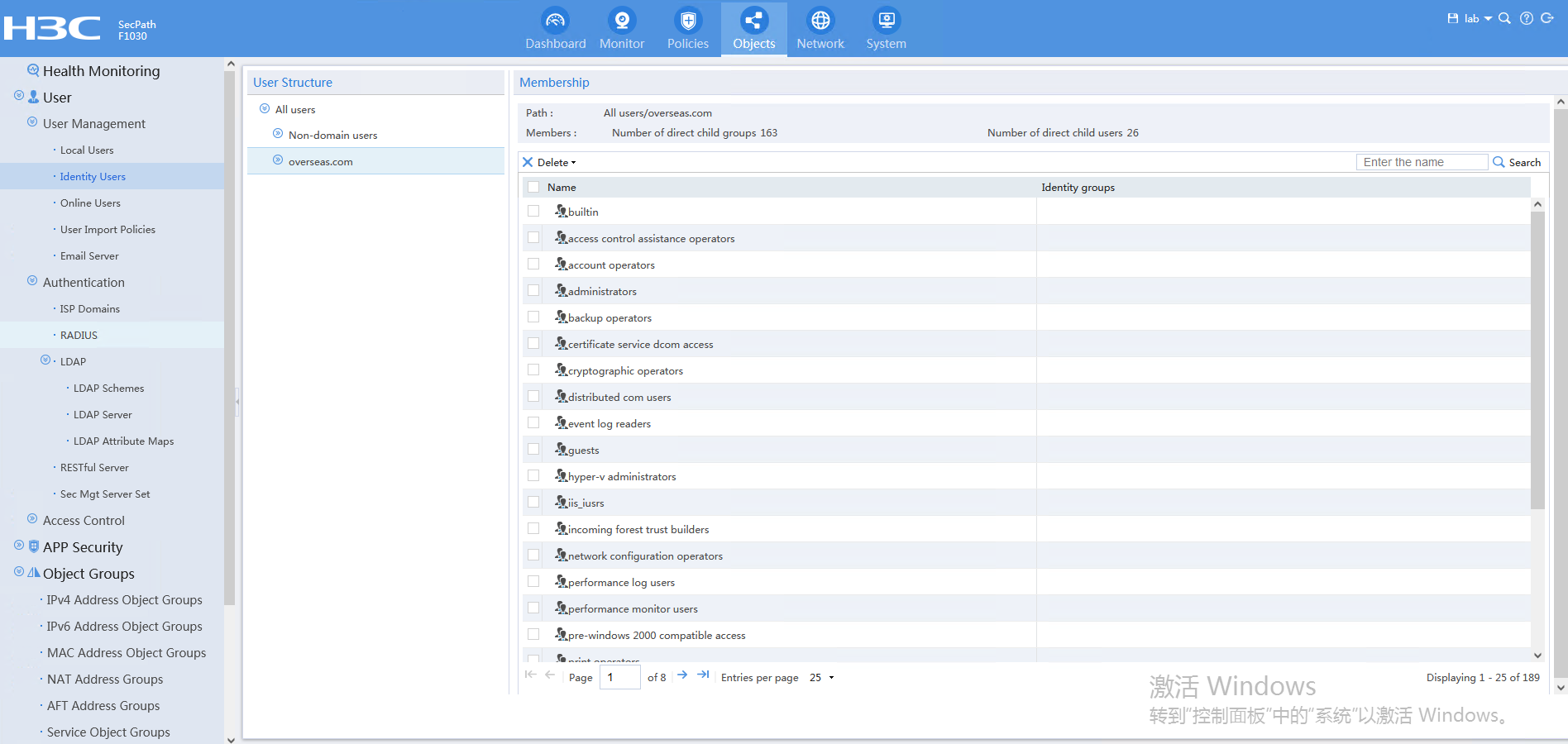

5. View imported users in Authenticated Users - Corresponding Domain

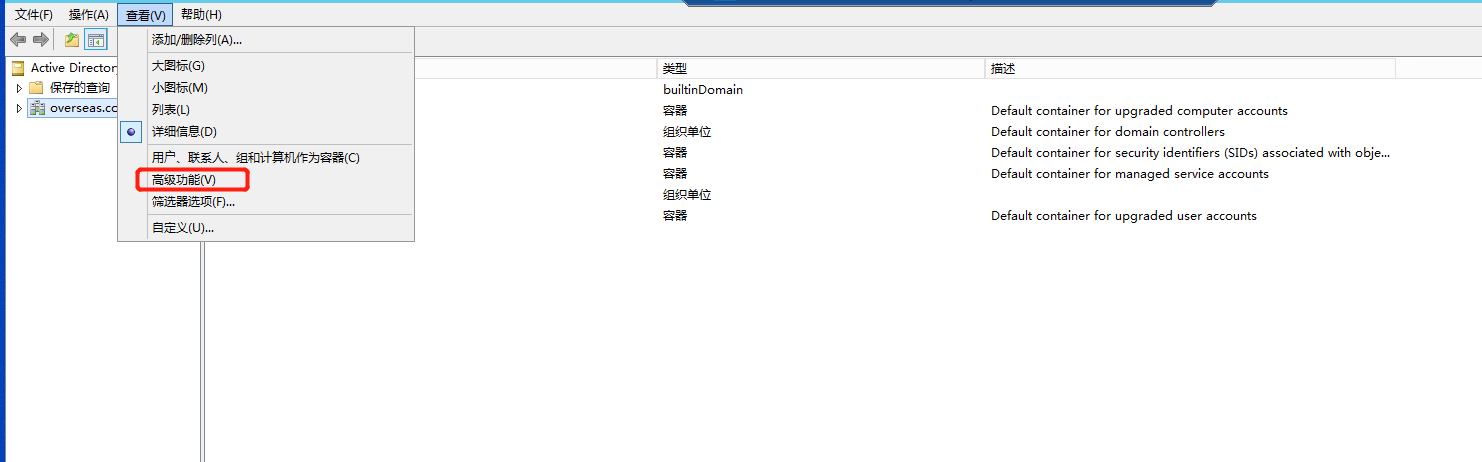

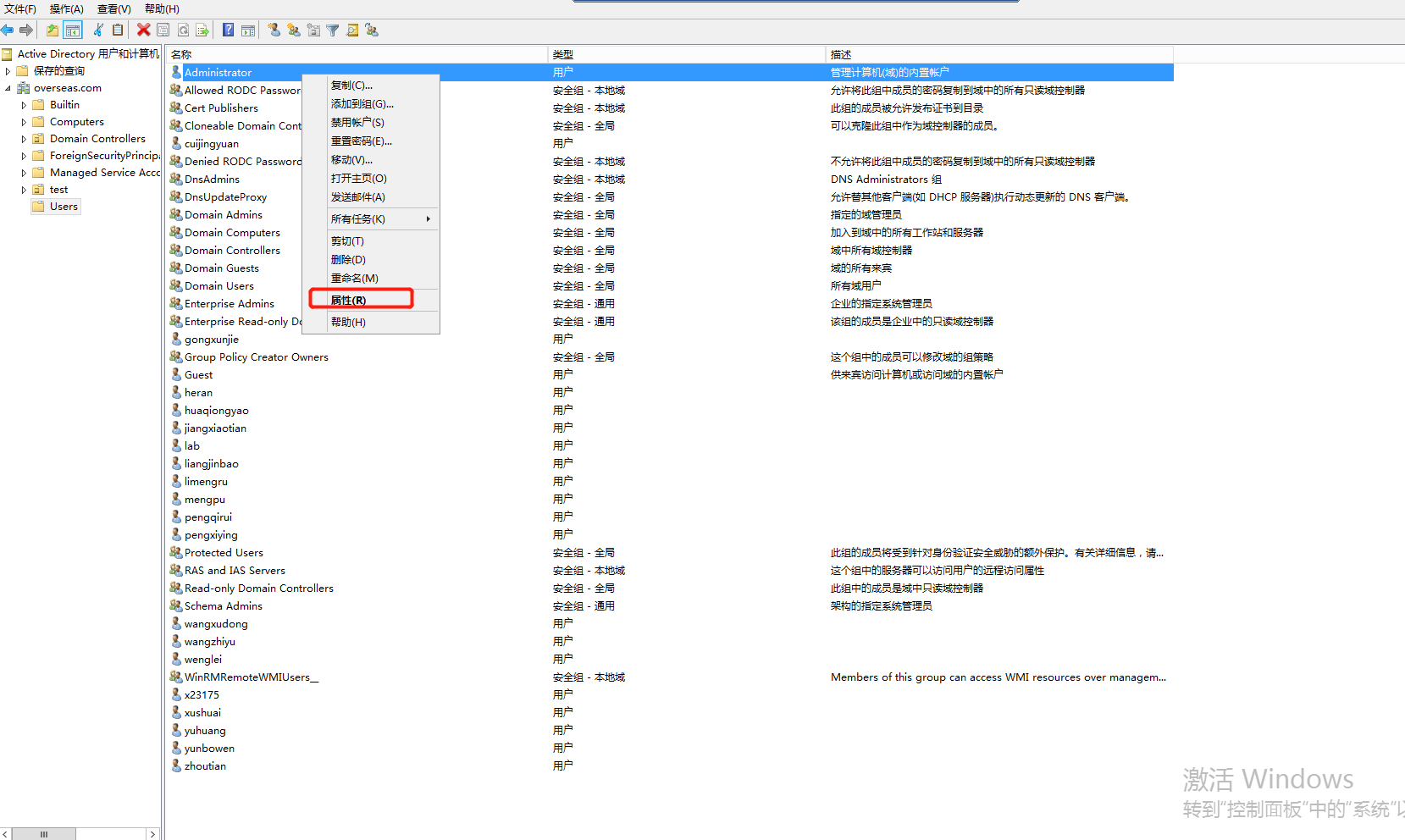

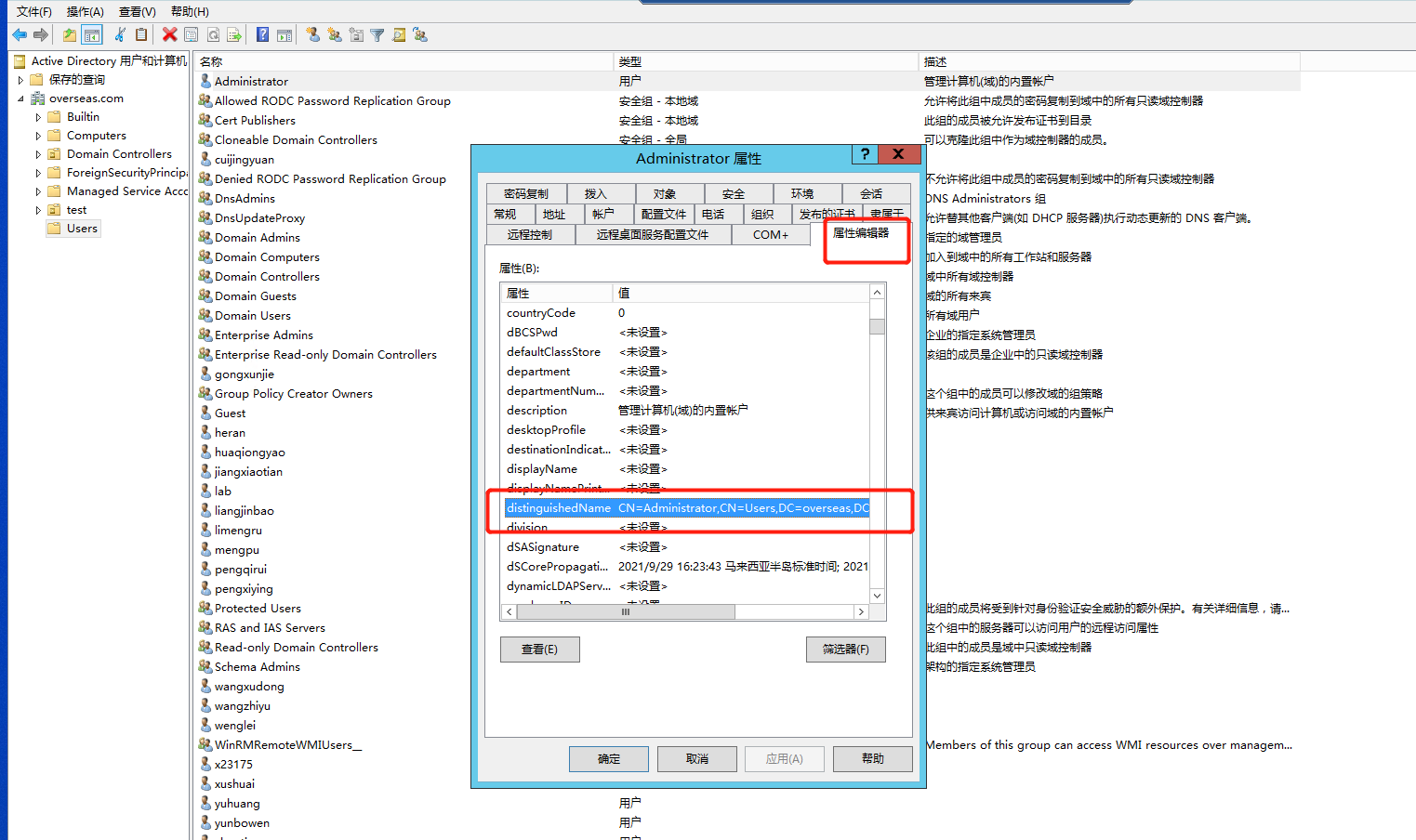

How to check the Administrator DN:
