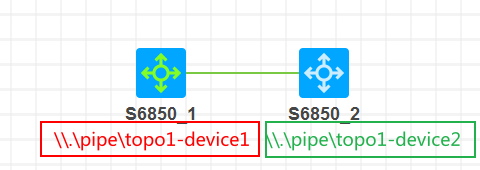

Network Topology
Open the corresponding HCL project
Note: The serial port can only be occupied by one software at a time.
Configuration Steps

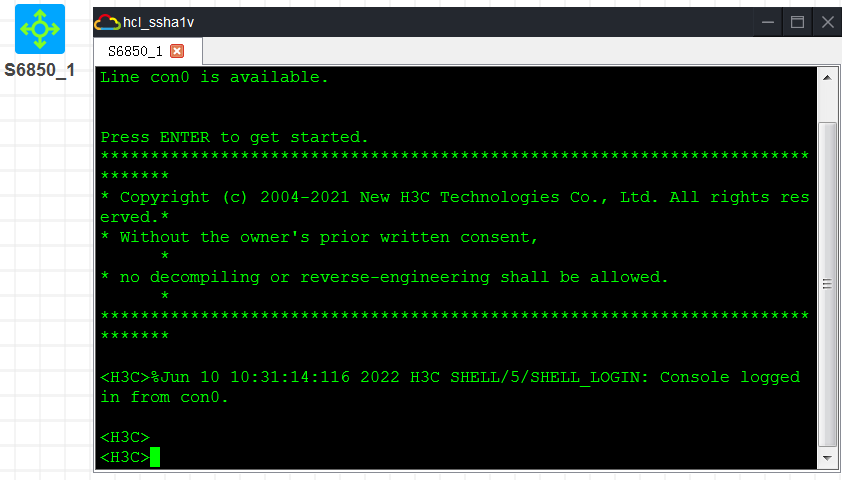

1.Make sure HCL project is working right now & Close this page before using other software:

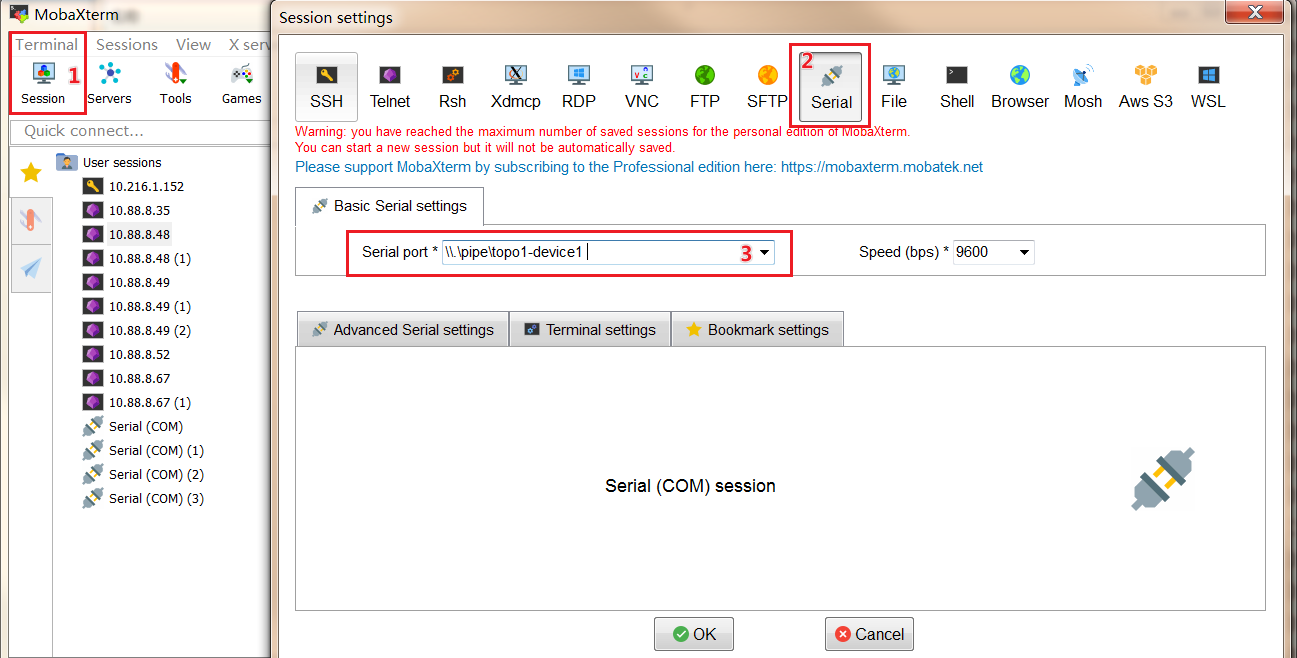

2.Open software Mobaxterm and select serial port, and input serial port : \\.\pipe\topo1-deviceX(device number)
3.Click "Enter" so that we can use mobaxterm software to manage HCL device.

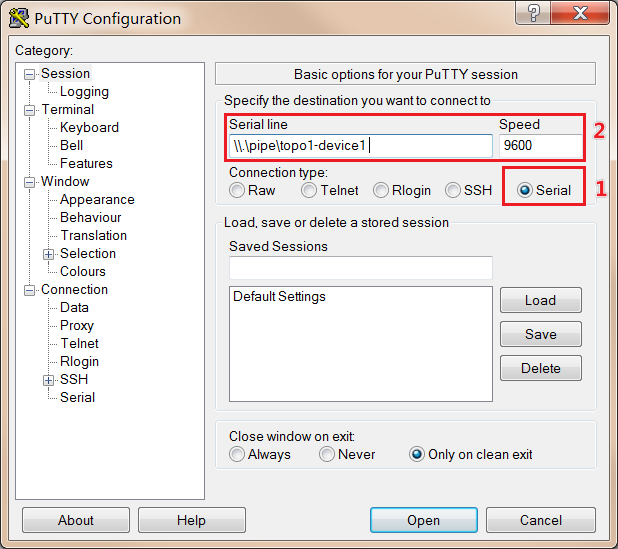

4.For putty software, the method is the same with mobxterm, please refer to following pictures:
Key Configuration
Serial port : \\.\pipe\topo1-deviceX(device number)
