★ The R4900G3 server installation system could not find the disks that have finished RAID

irrelevant

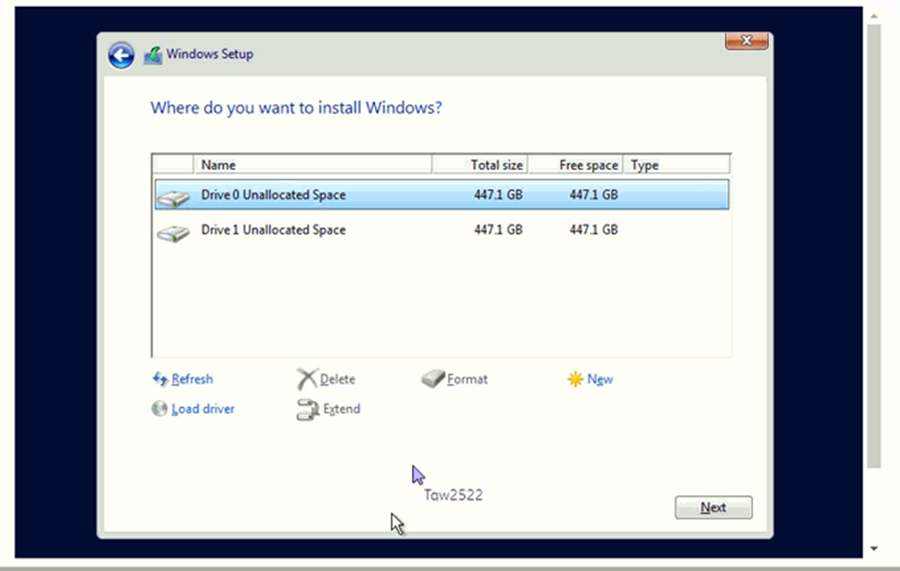

We have done RAID1 on the two 1.7T disks of the server. When installing WinServer2016, we found that the disks did not appear, as shown in the figure below:

1. Ask the engineer whether RAID has been done on the disks seen, and the conclusion is no;

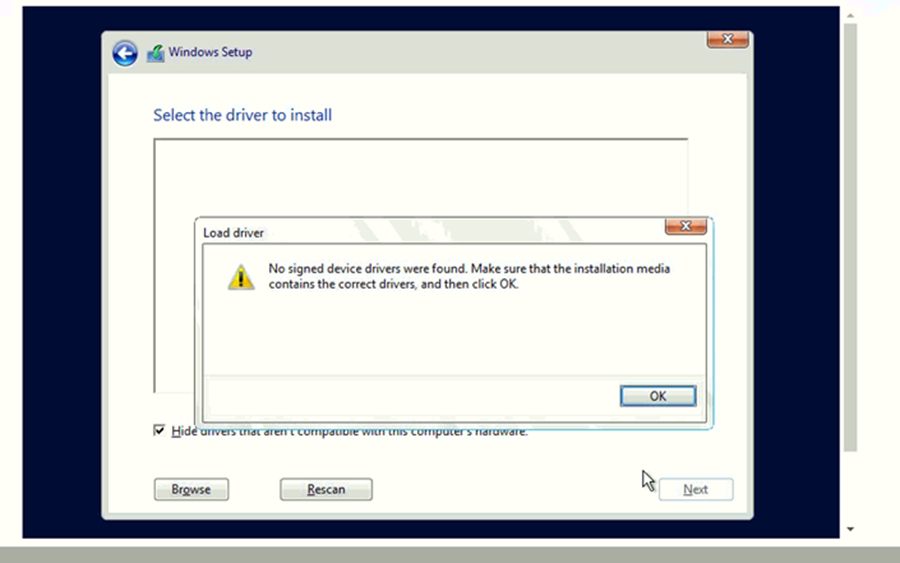

2. Ask the RAID card model: RAID-P460-M4, and then ask that the image is the official download of the pure mirror, which can be determined, the ISO does not exist in the RAID card driver, so the operating system can not identify the use of the RAID card to do the logical disk;

1. You can package a driver file in Windows 2016. ISO,

2.Based on our HDM virtual CD-ROM drive and mount a drive seal device after the ISO,

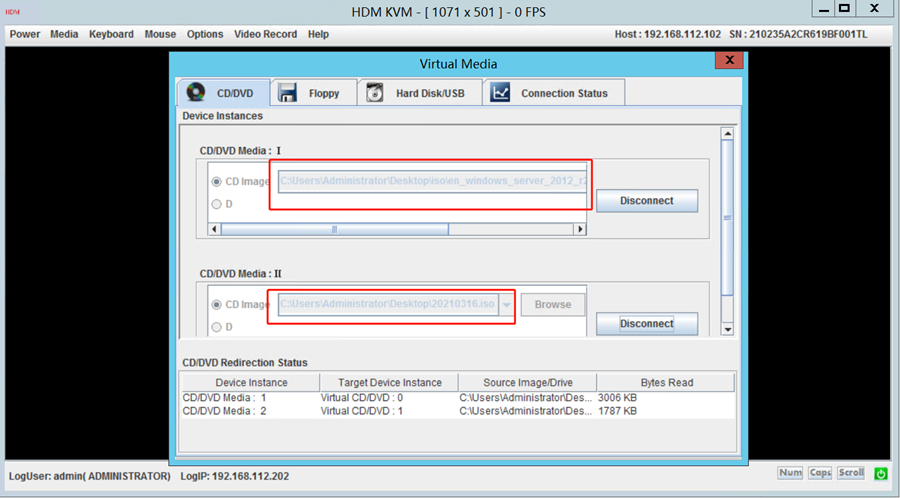

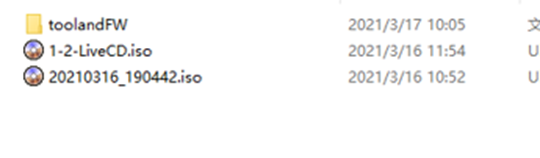

In this paper, the second method is used. Ultraiso is used to encapsulate the driver file as ISO and mount it to the server, as shown in the figure below:

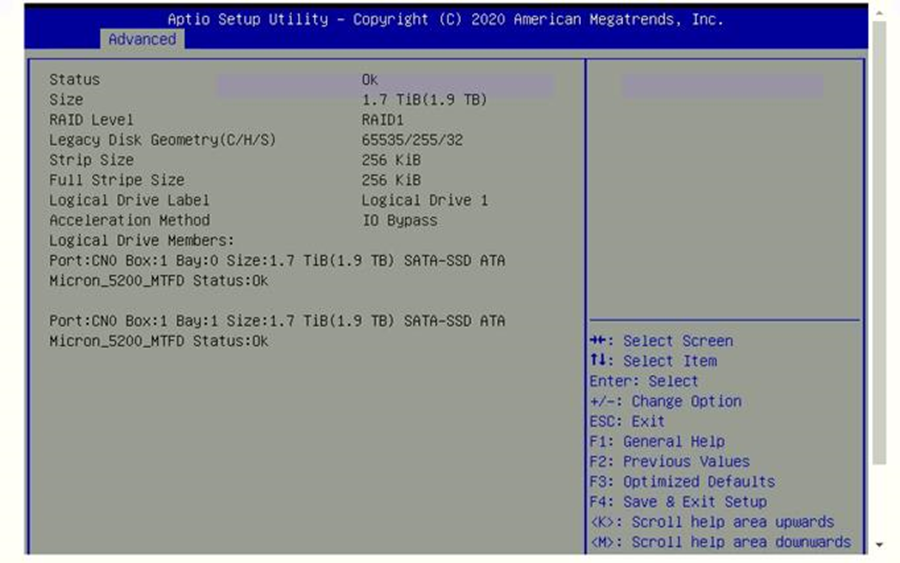

After you select the driver in the ISO, you can see the 1.7T logical disk that is done with RAID.
