F1000 and Huawei USG6620 to configure ikev2 IPsec VPN case

2022-07-05 10:17:24 Published
  • 0Followed
  • -1Collected ,453Browsed
fans:0 follow:0

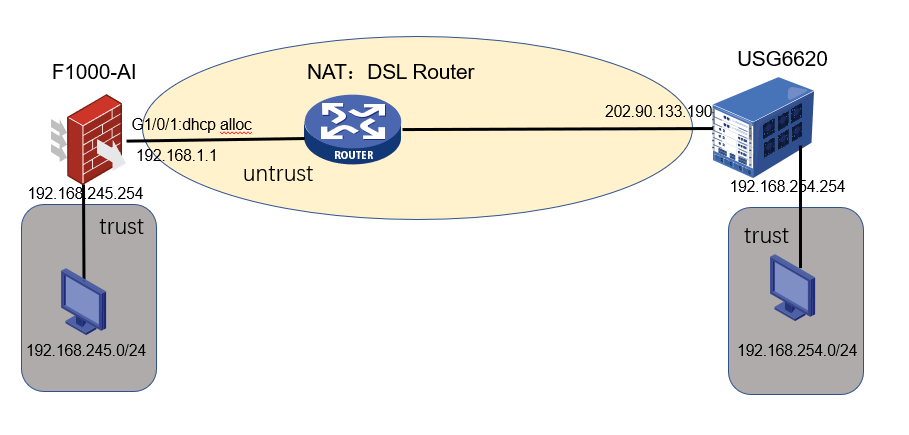

Network Topology

Network Topology:



Problem Description

The customer headquarters uses Huawei USG6620 firewall devices, and the branch uses H3C F1000 firewalls. An ipsec tunnel is established between the headquarters and the branch.


Process Analysis

How to complete the ipsec vpn configuration with huawei firewall device.

1.The ipsec of the firewall equipment in the headquarters uses IKEv2 to establish an IPsec tunnel to protect IPv4 packets. Therefore, the branch equipment needs to use IKEv2 to establish an IPsec tunnel synchronously.

2.The egress IP address of the branch firewall F1000 is dynamically obtained by dhcp, and the IP address is not fixed. Therefore, the branch device needs to use the local identity of the FQDN (Fully Qualified Domain Name) type.

3.In order to avoid the ipsec interest flow being converted by nat, it is necessary to remove the ipsec interest flow in the rule of NAT ACL.


Solution

F1000-AI branch configuration:

acl advanced 3000

 rule 0 permit ip source 192.168.245.0 0.0.0.255 destination 192.168.244.0 0.0.0.255

 rule 1 permit ip source 192.168.245.0 0.0.0.255 destination 192.168.247.0 0.0.0.255

 rule 2 permit ip source 192.168.245.0 0.0.0.255 destination 192.168.248.0 0.0.0.255

 rule 3 permit ip source 192.168.245.0 0.0.0.255 destination 192.168.249.0 0.0.0.255

 rule 4 permit ip source 192.168.245.0 0.0.0.255 destination 192.168.250.0 0.0.0.255

#

acl advanced name A333

 rule 0 deny ip source 192.168.245.0 0.0.0.255 destination 192.168.244.0 0.0.0.255

 rule 1 deny ip source 192.168.245.0 0.0.0.255 destination 192.168.247.0 0.0.0.255

 rule 2 deny ip source 192.168.245.0 0.0.0.255 destination 192.168.248.0 0.0.0.255

 rule 3 deny ip source 192.168.245.0 0.0.0.255 destination 192.168.249.0 0.0.0.255

 rule 4 deny ip source 192.168.245.0 0.0.0.255 destination 192.168.250.0 0.0.0.255

 rule 5 permit ip

#

ipsec transform-set transform1

 esp encryption-algorithm aes-cbc-256

 esp authentication-algorithm sha256

#

ipsec policy policy1 1 isakmp

 transform-set transform1

 security acl 3000

 remote-address 202.90.133.190

 ikev2-profile profile2

#

 ike identity fqdn butuan

 ike logging negotiation enable

#

ikev2 keychain keychain2

 peer huawei

  address 202.90.133.190 255.255.255.248

  identity address 202.90.133.190

  pre-shared-key ciphertext $c$3$3QGafg1zi9T1ABwXt+vcu/ygYgJk1wkRPViGrC8CrFQ=

#

ikev2 profile profile2

 authentication-method local pre-share

 authentication-method remote pre-share

 keychain keychain2

 identity local fqdn butuan

 match remote identity address 202.90.133.190 255.255.255.248

#

ikev2 proposal 2

 encryption aes-cbc-256

 integrity sha256

 dh group14

 prf sha256

#

interface GigabitEthernet1/0/1

 port link-mode route

 description GuideWan Interface

 ip address dhcp-alloc

 dns server 8.8.4.4

 dns server 8.8.8.8

 nat outbound name A333

 manage http inbound

 manage http outbound

 manage https inbound

 manage https outbound

 manage ping inbound

 manage ping outbound

 manage snmp inbound

 manage ssh inbound

 manage ssh outbound

 manage telnet inbound

 manage telnet outbound

 ipsec apply policy policy1

#

Huawei USG6620 headquarters configuration:

acl number 3000

 rule 660 permit ip source address-set NHQ(LAN) destination address-set "BJMP RO3 LAN"

 rule 665 permit ip source address-set NHQ(LAN) destination address-set "BJMP NCRO LAN"

 rule 670 permit ip source address-set NHQ(LAN) destination address-set "BJMP RO4A LAN"

 rule 675 permit ip source address-set NHQ(LAN) destination address-set "BJMP RO4B LAN"

 rule 730 permit ip source address-set NHQ(LAN) destination address-set "BJMP RO6 LAN"

 rule 805 permit ip source address-set "JSIOC Network" destination address-set "ALL RO"

 rule 810 permit ip source address-set "ALL RO" destination address-set "JSIOC Network"

 rule 830 permit ip source address-set NHQ(LAN) destination address-set "JSIOC Network"

 rule 835 permit ip source address-set "JSIOC Network" destination address-set NHQ(LAN)

 rule 840 permit ip source address-set "JSIOC Network" destination address-set "JSIOC Network"

#

ike proposal 1

 encryption-algorithm aes-256

 dh group14

 authentication-algorithm sha2-256

 authentication-method pre-share

 integrity-algorithm hmac-sha2-256

 prf hmac-sha2-256

#

ike peer ike69154846815

 exchange-mode auto

 pre-shared-key %^%#xW"<"6RdWHdq}"P}m;^P}ZNW2C;>+D)=>|:L+;xP%^%#

 ike-proposal 1

 local-id 202.90.133.190

 rsa encryption-padding pkcs1

 rsa signature-padding pkcs1

 ike negotiate compatible

 local-id-preference certificate enable

 ikev2 authentication sign-hash sha1

#

ipsec proposal prop69154846816

 encapsulation-mode auto

 esp authentication-algorithm sha2-256

 esp encryption-algorithm aes-256

 #

 ipsec policy-template tpl69154846816 1

 security acl 3000

 ike-peer ike69154846815

 proposal prop69154846816

 tunnel local 202.90.133.190

 alias JU&RO to NHQ

 sa duration traffic-based 20971520

 sa duration time-based 3600

#

ipsec policy ipsec6915484693 10000 isakmp template tpl69154846816

interface GigabitEthernet1/0/9

 undo shutdown

 ip address 202.90.133.190 255.255.255.248

 alias IGOV Internet

 healthcheck GDNS

 gateway 202.90.133.185

 service-manage https permit

 service-manage ping permit

 service-manage ssh permit

 bandwidth ingress 800000 threshold 95

 bandwidth egress 800000 threshold 95

 ipsec policy ipsec6915484693

#


IPsec vpn connection result:

ping -a 192.168.245.254 192.168.250.254

Ping 192.168.250.254 (192.168.250.254) from 192.168.245.254: 56 data bytes, press CTRL+C to break

56 bytes from 192.168.250.254: icmp_seq=0 ttl=255 time=39.550 ms

56 bytes from 192.168.250.254: icmp_seq=1 ttl=255 time=30.418 ms

56 bytes from 192.168.250.254: icmp_seq=2 ttl=255 time=93.727 ms

56 bytes from 192.168.250.254: icmp_seq=3 ttl=255 time=32.529 ms

56 bytes from 192.168.250.254: icmp_seq=4 ttl=255 time=30.849 ms



--- Ping statistics for 192.168.250.254 ---

5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss

-----------------------------------------------------------------

dis ikev2 sa

  Tunnel ID   Local                       Remote                      Status

  ---------------------------------------------------------------------------

  2           192.168.1.1/4500            202.90.133.190/4500         EST

Status:

IN-NEGO: Negotiating, EST: Established, DEL:Deleting



dis ipsec sa

-------------------------------

Interface: GigabitEthernet1/0/1

-------------------------------



  -----------------------------

  IPsec policy: policy1

  Sequence number: 1

  Mode: ISAKMP

  -----------------------------

    Tunnel id: 0

    Encapsulation mode: tunnel

    Perfect Forward Secrecy:

    Inside VPN:

    Extended Sequence Numbers enable: N

    Traffic Flow Confidentiality enable: N

    Transmitting entity: Initiator

    Path MTU: 1416

    Tunnel:

        local  address: 192.168.1.1

        remote address: 202.90.133.190

    Flow:

        sour addr: 192.168.245.0/255.255.255.0  port: 0  protocol: ip

        dest addr: 192.168.250.0/255.255.255.0  port: 0  protocol: ip



    [Inbound ESP SAs]

      SPI: 1231797916 (0x496bbe9c)

      Connection ID: 12502649798656

      Transform set: ESP-ENCRYPT-AES-CBC-256 ESP-AUTH-SHA256

      SA duration (kilobytes/sec): 1843200/3600

      SA remaining duration (kilobytes/sec): 1843199/3416

      Max received sequence-number: 10

      Anti-replay check enable: Y

      Anti-replay window size: 64

      UDP encapsulation used for NAT traversal: Y

      Status: Active



    [Outbound ESP SAs]

      SPI: 200538556 (0x0bf3f9bc)

      Connection ID: 2005749727233

      Transform set: ESP-ENCRYPT-AES-CBC-256 ESP-AUTH-SHA256

      SA duration (kilobytes/sec): 1843200/3600

      SA remaining duration (kilobytes/sec): 1843199/3416

      Max sent sequence-number: 9

      UDP encapsulation used for NAT traversal: Y

      Status: Active
