★ The host configures the iSCSI storage and mounts it to the VM

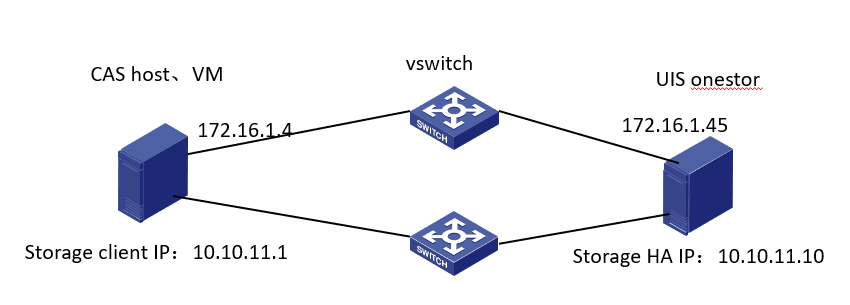

Topo:

How to mount UIS iscsi storage to CAS host and VM for use.

none

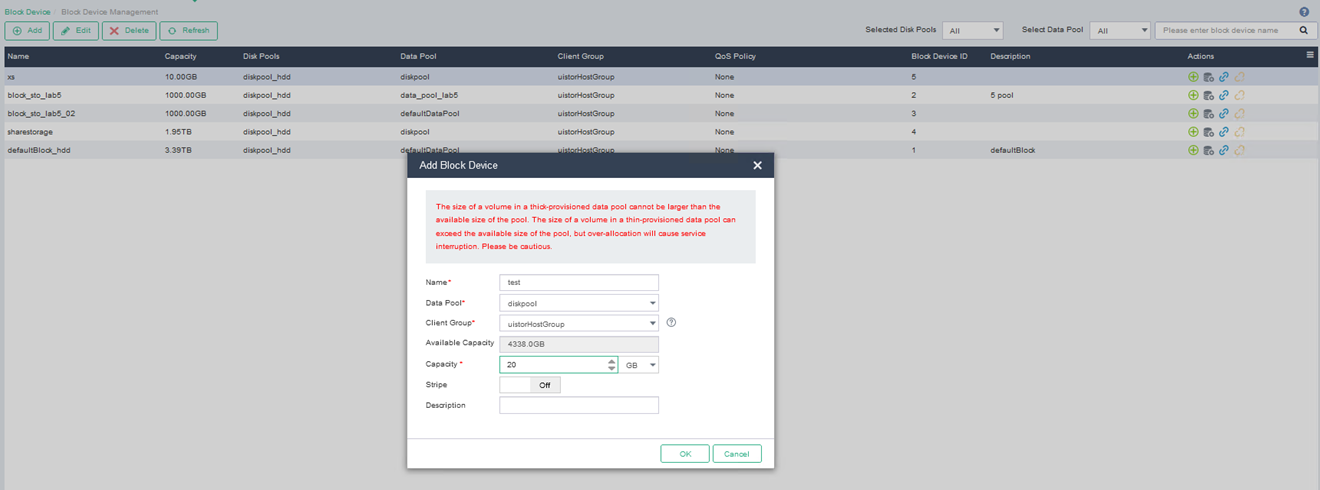

1.Select host group when UIS creates block device

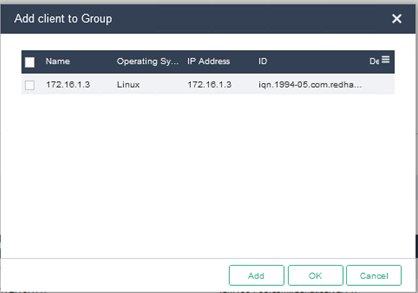

2.Add host to host group

3.Need to know the host iqn number

Cat /etc/iscsi/initiatorname.iscsi on the virtual machine to see the host identifier.

[root@cvknode28 ~]# cat /etc/iscsi/initiatorname.iscsi

InitiatorName=iqn.1994-05.com.redhat:ba934e5c3f

4.Add a block device storage pool on the host side

5.To add storage to the virtual machine on this host, select a block device

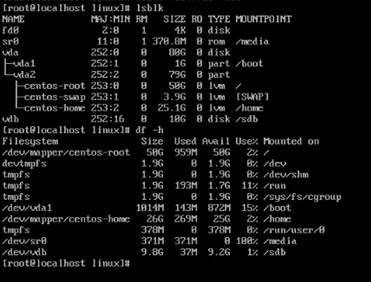

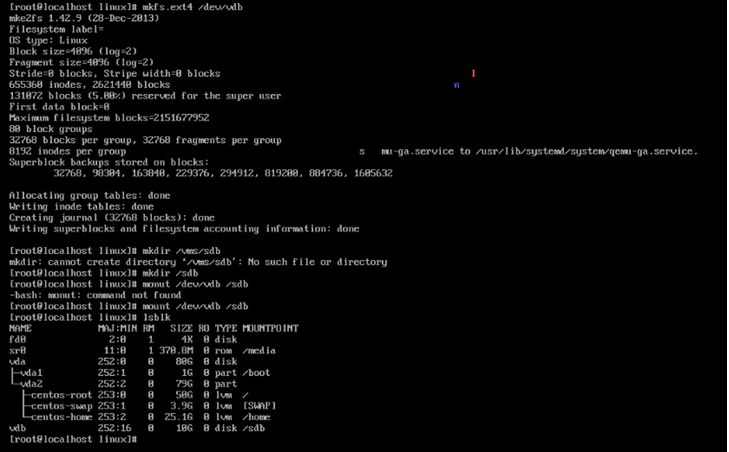

6. In the virtual machine, the block device has been mapped, but there is no mounted directory, and it needs to be mounted manually.

7.Iscsi main commands:

cat /etc/iscsi/initiatorname.iscsi                        //View client side host identifier

iscsiadm -m session                                          //View the session between the client and the storage

iscsiadm -m discovery -t st -p 172.16.4.77       //Discovers the shared storage volume, 172.16.4.77 is the storage HA high-availability IP

iscsiadm -m node -l                                          //mount all iscsi session

ll /dev/disk/by-path                                         //View iqn and lun numbers iscsiadm -m node -u all Unmount all
