Firewall SSL VPN Troubleshooting Process

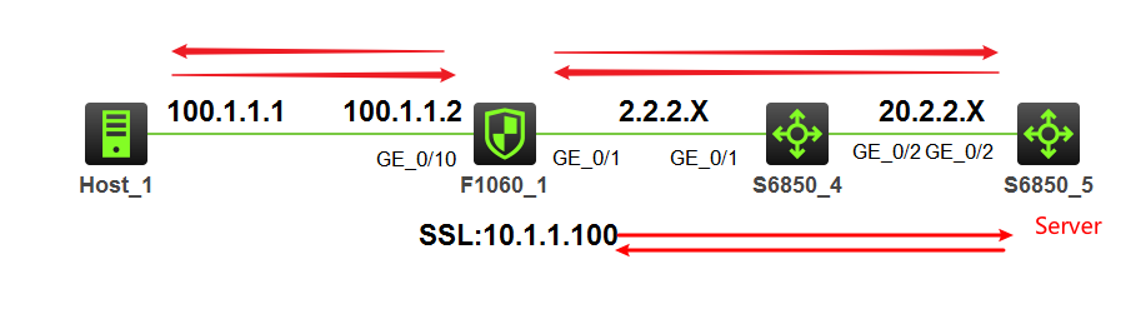

interface GigabitEthernet0/1

 port link-mode route

 ip address 100.1.1.2 255.255.255.0           ----Public Interface IP address

#

interface GigabitEthernet0/2

 port link-mode route

 ip address 2.2.2.2 255.255.255.0            ----LAN Interface IP address

#

interface SSLVPN-AC1

 ip address 10.1.1.100 255.255.255.0     ----SSL-AC  Interface IP address

#

acl advanced 3000

 rule 0 permit ip source 10.1.1.0 0.0.0.255 destination 2.2.2.0 0.0.0.255   ----ACL from SSL client to LAN network

#

local-user sslvpnuser class network  ----SSLVPN Local User

 password simple 123456

 authorization-attribute user-role network-operator

 authorization-attribute sslvpn-policy-group resourcegrp

#

sslvpn ip address-pool sslvpnpool 10.1.1.1 10.1.1.10  ----SSLVPN IP Pool

#

sslvpn gateway gw   ----SSLVPN gateway

 ip address 100.1.1.2 port 4430

 service enable

#

sslvpn context ctxip ----SSLVPN context

 gateway gw

 ip-tunnel interface SSLVPN-AC1

 ip-tunnel address-pool sslvpnpool mask 255.255.255.0

 ip-route-list rtlist

  include 2.2.2.0 255.255.255.0

 policy-group resourcegrp

  filter ip-tunnel acl 3000

  ip-tunnel access-route ip-route-list rtlist

 service enable

#

return

2.Check security-zone configuration:

security-zone name untrust

 import interface fw-wan

import interface sslvpn-ac 1

quit

security-zone name trust

import interface gigabitethernet FWlan

quit

 #

object-group ip address fw-lan

 0 network subnet 2.2.2.0 255.255.255.0

#

object-group ip address lan-server

 0 network subnet 20.2.2.0 255.255.255.0

#

object-group ip address fw-wan

 0 network host address 100.1.1.2

#

object-group ip address wan-sslvpn-host

 0 network subnet 100.1.1.0 255.255.255.0

#

object-group ip address sslvpn-ac

0 network subnet 10.1.1.0 24

#

secu ip

#

 rule 0 name SSLVPN

  source-zone Local

  source-zone Untrust

  source-zone Trust

  destination-zone Untrust

  destination-zone Local

  destination-zone Trust

  source-ip fw-wan

  source-ip wan-sslvpn-host

  source-ip lan-server

  source-ip fw-lan

  source-ip sslvpn-ac

  destination-ip wan-sslvpn-host

  destination-ip fw-wan

  destination-ip fw-lan

  destination-ip lan-server

  destination-ip sslvpn-ac

#

3.Start Debugging SSLVPN.

<H3C>terminal monitor

<H3C>terminal debugging

<H3C>debugging sslvpn all

<H3C>system-view

[H3C]info-center  enable

#

A common problem is that TLS negotiation fails. Solution: Customize the latest version of Inode to support TLS 1.2.

4.If debugging does not show any information, use following comand to check the session.

<h3c>display session table ipv4 destination-ip 100.1.1.2 destination-port 4430 verbose

if no session exists, mean that the device ,should check the connetcivity between pulic host and FW wan interface.

5.If we have Global NAT configuration existing, remember to check the NAT session.

<H3C>display nat session destination-ip 100.1.1.2 verbose
