★ MPLS L2VPN Docking with third-party device H

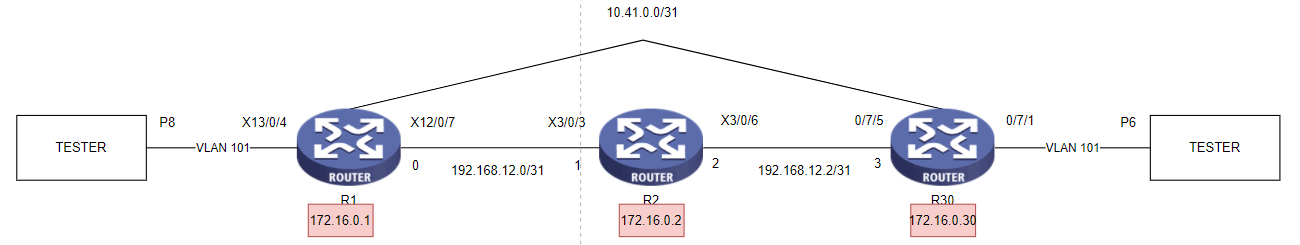

H3C(R1)-----H3C(R2)---third-party device H(R30)

Basic ISIS route is not described here.

R1:

mpls lsr-id 172.16.0.1

mpls ldp

#

xconnect-group aaa

 connection ldp

 ac interface Ten-GigabitEthernet13/0/4 service-instance 1000 access-mode ethernet

 peer 172.16.0.30 pw-id 1000

#

interface Ten-GigabitEthernet13/0/4

 port link-mode route

 ac statistics enable

#

interface Ten-GigabitEthernet12/0/7

 port link-mode route

 ip address 192.168.12.0

255.255.255.254

 isis enable 100

 mpls enable

 mpls ldp enable

#

R30:

mpls l2vpn

mpls

mpls ldp

mpls lsr-id 172.16.0.30

#

 mpls ldp remote-peer 1

 remote-ip 172.16.0.1

#

interface GigabitEthernet0/7/5

 ip address 192.168.12.3 255.255.255.254

 isis enable 1001

 mpls

 mpls ldp

#

interface GigabitEthernet0/7/1

mpls mpls l2vc 172.16.0.1 1000

#

#

 mpls ldp remote-peer 1

 remote-ip 172.16.0.1

#

interface GigabitEthernet0/7/1

mpls mpls l2vc 172.16.0.1 1000

#
