★V7 NGFW Redundancy Group Active/Standby Link Switchover Is Abnormal

The firewall is configured with IRF, and the uplink and downlink devices are connected through the Reth port.

The customer wanted to do the switchover test of the active and standby links, and found that after the active 1/0/4 was unplugged, the traffic could not be switched to 2/0/4 to take the standby link.

After unplugging, the member state forwarding of the Reth port is Inactive

<TLC_QT_FW01>display  reth interface  Reth  2

Reth2 :

  Redundancy group  : ha

  Member           Physical status         Forwarding status   Presence status

  GE1/0/4          DOWN                    Active              Normal

  GE2/0/4          UP                      Inactive            Normal

First check the Reth port and redundancy group configuration:

#

interface Reth1

 description TO_CoreSW

 member interface Route-Aggregation1 priority 110

 member interface Route-Aggregation2 priority 100

#

interface Reth2

member interface GigabitEthernet1/0/4 priority 100

member interface GigabitEthernet2/0/4 priority 50

#

security-zone name Trust

import interface Reth1

import interface Route-Aggregation1

import interface Route-Aggregation2

#

security-zone name Untrust

import interface GigabitEthernet1/0/1

 import interface GigabitEthernet1/0/4

 import interface GigabitEthernet2/0/1

 import interface GigabitEthernet2/0/4

 import interface Reth2

 #

redundancy group ha

 member interface Reth1

 member interface Reth2

 node 1

  bind slot 1

  priority 255

  track 10 reduced 150 interface Route-Aggregation1

  track 11 reduced 150 interface GigabitEthernet1/0/4

  track 12 reduced 150 interface GigabitEthernet1/0/2

  track 13 reduced 150 interface GigabitEthernet1/0/3

 node 2

  bind slot 2

  priority 50

  track 20 reduced 150 interface Route-Aggregation2

  track 21 reduced 150 interface GigabitEthernet2/0/4

  track 22 reduced 150 interface GigabitEthernet2/0/2

  track 23 reduced 150 interface GigabitEthernet2/0/3

#

It is found that each track item is configured with reduced 150, which is not configured in typical configuration cases, so check the relevant instructions in the configuration guide:

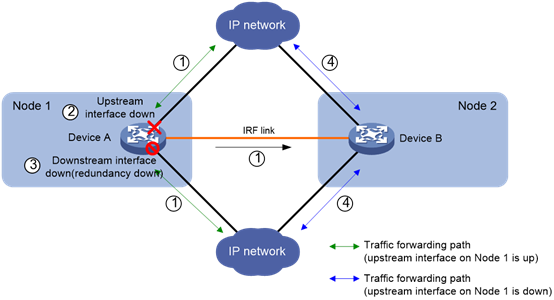

A redundancy group cooperates with the Track module to monitor link and interface status for automatic switchovers.

A redundancy group node has a weight of 255 (not configurable). Each redundancy group node is associated with one or multiple track entries that have a user-configurable weight decrement rate. When the state of a track entry changes, the weight of the associated node is reduced or increased, as follows:

·     When the track entry changes to the NotReady or Negative state, the node weight is reduced by the weight decrement rate of the track entry.

·     When the track entry changes to the Positive state, the node weight is increased by the weight decrement rate of the track entry.

When the node weight decreases to 0 or a lower value, a switchover request is triggered.

·     Switchover to the low-priority node occurs when the hold-down timer expires.

·     Switchover to the high-priority node occurs when the preemption delay timer expires.

Therefore, it is concluded that the cause of the failure is that the default priority of node 1 is 255. When the track item fails, the weight is only reduced by 150, which cannot reach the value of automatic switching, so the active and standby links will not be switched.

Modify the track item configuration to solve:

#

redundancy group ha

member interface Reth1

member interface Reth2

node 1

  bind slot 1

  priority 255

  track 10 interface Route-Aggregation1 //reduced weight-reduced: Specifies the weight decrement rate in the range of 1 to 255. The default is 255.

  track 11 interface GigabitEthernet1/0/4

  track 12 interface GigabitEthernet1/0/2

  track 13 interface GigabitEthernet1/0/3

node 2

  bind slot 2

  priority 50

  track 20 reduced 150 interface Route-Aggregation2

  track 21 reduced 150 interface GigabitEthernet2/0/4

  track 22 reduced 150 interface GigabitEthernet2/0/2

  track 23 reduced 150 interface GigabitEthernet2/0/3

#
