★ Portal authentication user logs out automatically after being online for a few minutes

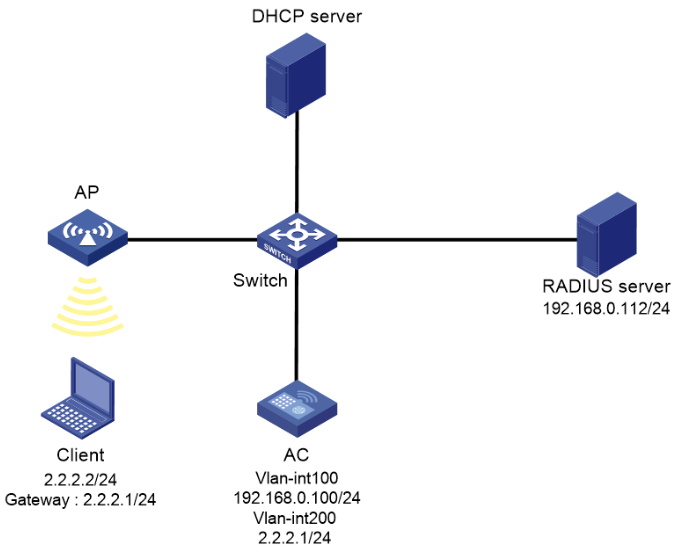

Typical Networking for Portal Authentication

The site is deployed in the wireless Portal networking mode and iMC server method for authentication. However, the portal authentication user will log out automatically after being online for a few minutes.

(1) Firstly, through the phenomenon analysis, the client can pass the authentication and go online to prove that there is no problem at the        authentication level.

(2) Check configuration:

     #Idle cut function are not configured on the AC

      Authorization attributes:

      Idle cut: Disabled

     #Portal user sync function configured on the AC

      portal server xxx

      ip xx.xx.xxx.xxx key cipher $c$3$O1BpUXkIz4zi1vbq7tJz/15KzswklOWqGw==

      user-sync timeout 1200

      server-detect log

     #

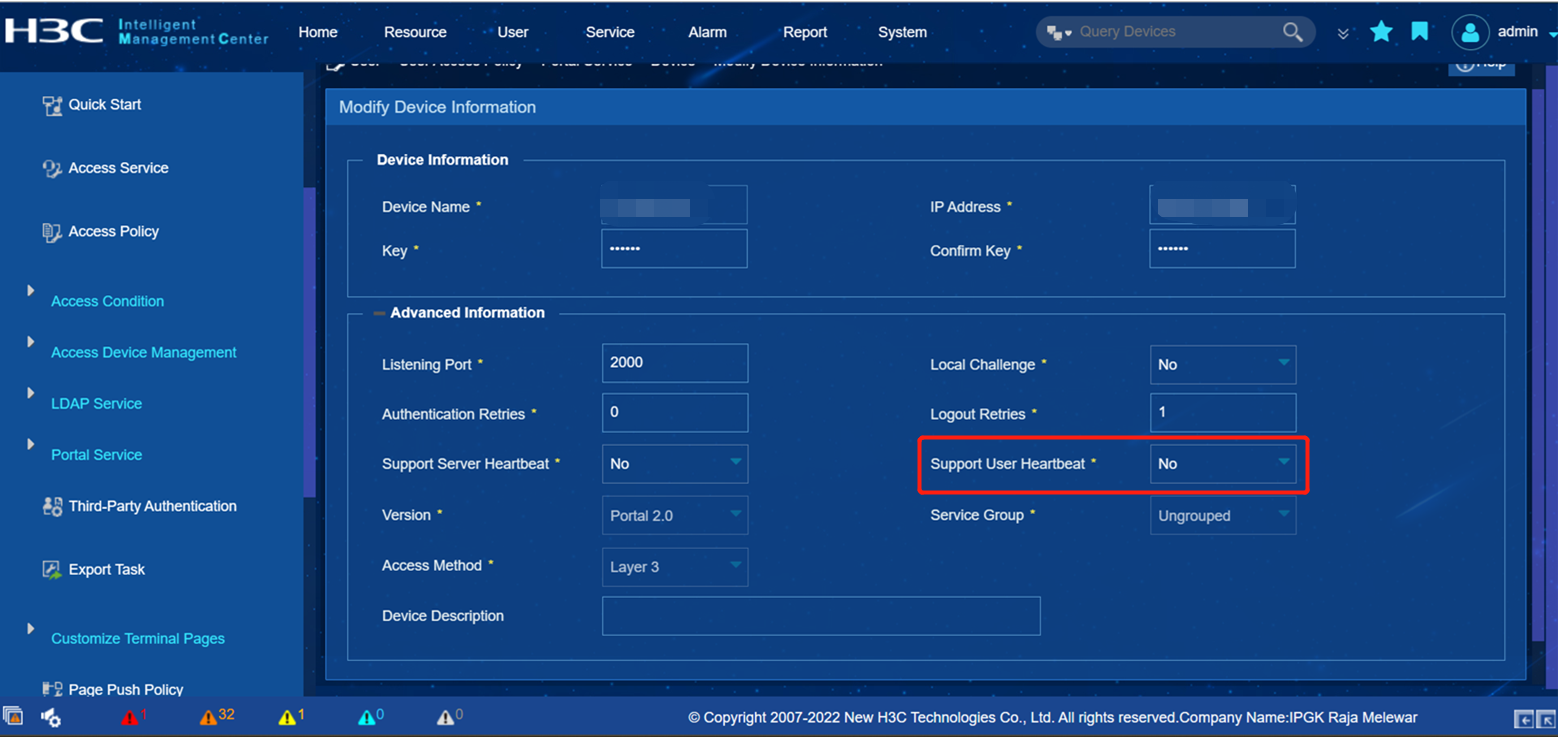

(3) After confirmation, the Support User Heartbeat function is not enabled on the imc.

The Portal User information sync function has been configured on the AC.

This function must be enabled at the same time as the User Heartbeat function on the iMC.
