IPSEC Over GRE Tunnel using IKEv2 between H3C F1080 and CISCO ASA

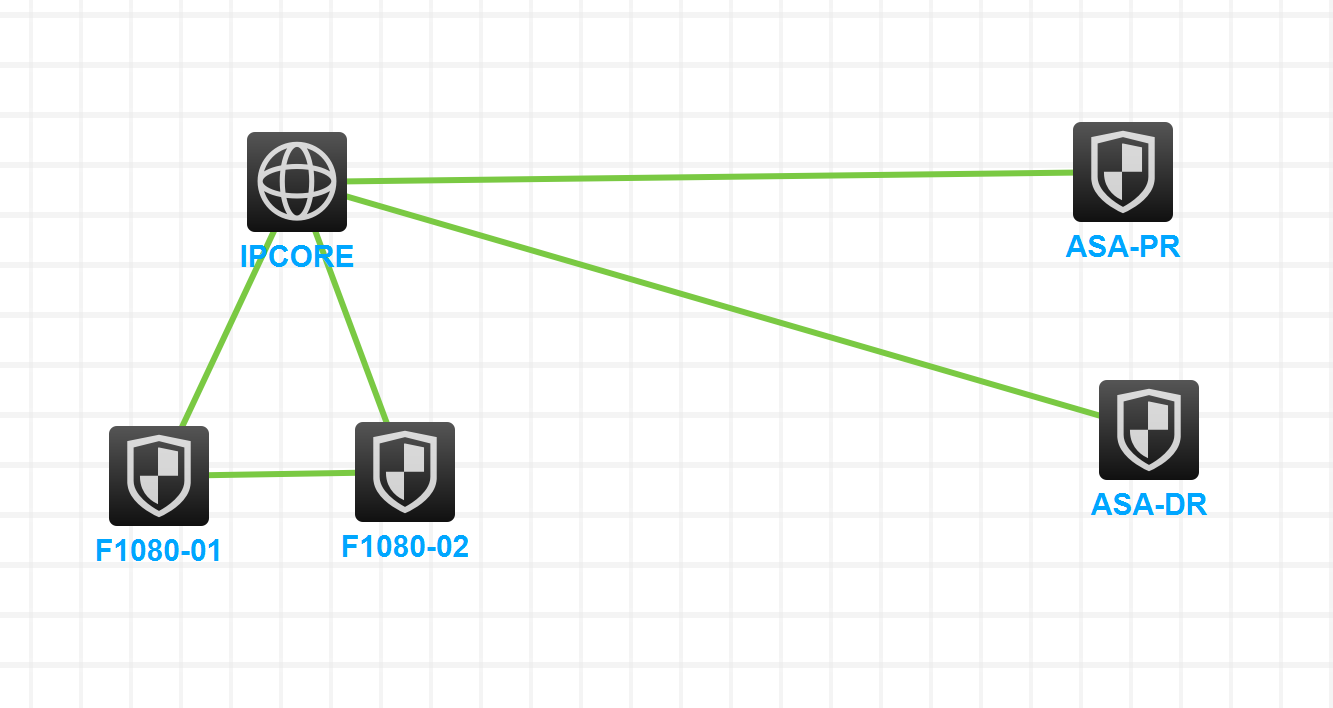

Topology

In XXX project we installed 2*F1080 Firewalls in IRF Mode. Configured 3*Contexts for 3 Different services and configured OSPF with Uplink IPCORE PE routers in each context.

Customer requests to establish IPSEC over GRE tunnel with remote CISCO ASA firewalls for some critical services.

As we have dual uplink to IPCORE so to avoid complexity I configured loopback interface on firewall and use it as local Peer address. and advertise this loopback in OPSF to IPCORE. And receive remote Peer IP as in OSPF

i created GRE tunnel and set source IP as This loopback and applied IPSEC policy on this tunnel

I discussed with Customer that for this solution VTI tunnel or IPSEC over GRE would be best. So after customer agreement we configured IPSEC over GRE tunnel

acl advanced 3101

 rule 0 permit ip source x.x.x.x 0 destination x.x.x.x 0

 rule 5 permit ip source 193.x.x.x.x 0 destination x.x.x.x 0

#

acl advanced 3102

 rule 0 permit ip source x.x.x.x 0 destination x.x.x.x 0

#

ipsec transform-set MFS_USSD

 esp encryption-algorithm aes-cbc-256

 esp authentication-algorithm sha256

 pfs dh-group2

#

ipsec policy MFS_USSD 10 isakmp

 transform-set MFS_USSD

 security acl 3101

 remote-address x.x.x.x

 ikev2-profile MFS_USSD

#

ipsec policy MFS_USSD_PR 10 isakmp

 transform-set MFS_USSD

 security acl 3102

 remote-address x.x.x.x

 ikev2-profile MFS_USSD_PR

#

ikev2 keychain MFS_USSD

 peer MFS_USSD

  address x.x.x.x .25 255.255.255.255

  identity address x.x.x.x

  pre-shared-key simple

#

ikev2 keychain MFS_USSD_PR

 peer MFS_USSD_PR

  address x.x.x.x  255.255.255.255

  identity address x.x.x.x

  pre-shared-key simple

#

ikev2 profile MFS_USSD

 authentication-method local pre-share

 authentication-method remote pre-share

 keychain MFS_USSD

 match remote identity address x.x.x.x 255.255.255.255

#

ikev2 profile MFS_USSD_PR

 authentication-method local pre-share

 authentication-method remote pre-share

 keychain MFS_USSD_PR

 match remote identity address x.x.x.x 255.255.255.255

#

ikev2 proposal MFS_USSD

 encryption aes-cbc-256

 integrity sha256

 dh group14

#

ikev2 policy MFS_USSD

 proposal MFS_USSD

#

 ip route-static x.x.x.x 32 Tunnel2

 ip route-static x.x.x.x 32 Tunnel1
