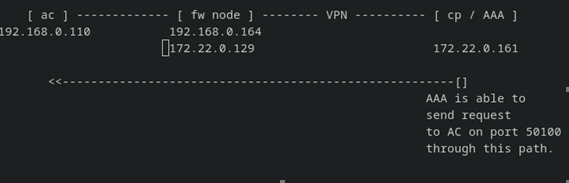

Network Topology
Topo：
Problem Description
The customer engineer are trying to integrate H3C controller with a thire-party captive portal/ AAA server.
However, the controller failed to respond and make radius request to our AAA when server send portal protocol packet to port 50100 on the controller after the user has been authenticated on our web server.
Process Analysis
The main configuration on the AC is as follows，and there is no problem with the configuration.
wlan service-template
attrelogix-wifi-staging
description test atlg
ssid AttreLogix-WiFi-Staging
portal enable method direct
portal domain atlg-domain
portal apply web-server "ATLG Apollo"
service-template enable
#
portal free-rule 1 destination ip any udp
53
portal free-rule 1 description dns
portal free-rule 2 source ip any udp 53
portal free-rule 2 description dns
portal free-rule 3 source ip 103.13.75.198 255.255.255.255
portal free-rule 3 description portal
portal free-rule 4 destination ip 103.13.75.198 255.255.255.255
portal free-rule 4 description portal
#
portal web-server "ATLG Apollo"
url https://eaziwi5.attrelogix.com:8443/cp/attrelogix/h3c/
server-type cmcc
#
url-parameter ssid value
AttreLogix-WiFi-Staging
url-parameter url original-url
url-parameter wlanuserip source-address
#
portal server "ATLG Apollo"
ip 192.168.0.110
server-type cmcc
#
radius scheme atlg-radius
primary authentication 103.13.75.198 24812 key cipher
$c$3$BOski+caHFhX6AmGmw4G0jp5iJQ0n5CD7iXPyK4=
primary accounting 103.13.75.198 24813 key cipher
$c$3$Slw7E1baadx/TK13wbxNmGS9Bl/y/34sngz/UsU=
key authentication cipher $c$3$u7pxZdMsAnEnARvOtlfA9qXCM27V6E7DwbrYYmw=
key accounting cipher $c$3$YmyC4B7N5MGERdyPTX1sBPQV3yGO1v9Jb35NW+k=
user-name-format keep-original
#
domain atlg-domain
authentication portal radius-scheme atlg-radius
authorization portal radius-scheme atlg-radius
accounting portal radius-scheme atlg-radius
#

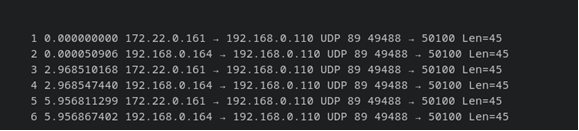

The engineer captures packets on the firewall side and finds that the packets are as follows，the portal server sends a message with the destination port 50100 to H3C controller .
However, we know that in the interaction of portal messages, the portal server needs to listen port number 50100, and the AC needs to listen port number 2000, so the AC will not respond to the port number of 50100.
Solution
The Onsite engineer modify the destination port number of the portal message to 2000 to realize the normal connection between the AC and the portal server.
