★ WX2860X cannot integrate with a third-party captive portal/ AAA server to forces portal users to go offline

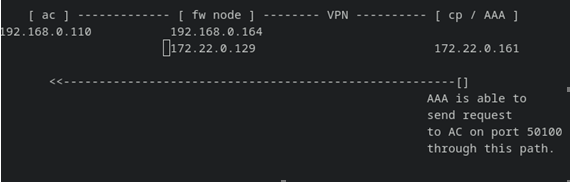

Topo：

How to implement third-party portal server offline portal users instead of admin login access controller to do that

Wireless controller support radius dynamic-author, ​​and if radius server to send RADIUS Disconnect-Request to access controller and access controller can response Disconnect-ACK back to AAA.

Configuring the RADIUS DAS feature description：

Dynamic Authorization Extensions (DAE) to RADIUS, defined in RFC 5176, can log off online users and change online user authorization information.

In a RADIUS network, the RADIUS server typically acts as the DAE client (DAC) and the NAS acts as the DAE server (DAS).

When the RADIUS DAS feature is enabled, the NAS performs the following operations:

1.     Listens to the default or specified UDP port to receive DAE requests.

2.     Logs off online users that match the criteria in the requests, changes their authorization information, shuts down or reboots their access ports, or reauthenticates the users.

3.     Sends DAE responses to the DAC.

DAE defines the following types of packets:

·     Disconnect Messages (DMs)—The DAC sends DM requests to the DAS to log off specific online users.

·     Change of Authorization Messages (CoA Messages)—The DAC sends CoA requests to the DAS to change the authorization information of specific online users.

The NAS searches for matching users based on the user identification information and device identification information in DAE requests. (The user identification information includes the username, user IP address, and Acct-Session-Id, and the device identification information includes the NAS IP address and NAS-ID.) If matching users are found, the NAS logs out the users or changes the authorization information for the users. If no matching users are found, the NAS replies with a NAK message. When DAE loose check is enabled, the NAS checks only part of the user identification information in a DAE request and does not check the device

Add dynamic-author server function

 radius dynamic-author server

 client ip 172.23.1.161 key cipher $c$3$GhGoXHKL4EsMz2dV9MmGjyBqmSpmNHZdGZ5QR8E=

The complete configuration is as follows:

wlan service-template attrelogix-wifi-staging

 description test atlg

 ssid AttreLogix-WiFi-Staging

 portal enable method direct

 portal domain atlg-domain

 portal apply web-server "ATLG Apollo"

 service-template enable

#

radius scheme atlg-radius

 primary authentication 172.23.1.161 key cipher $c$3$5TouFyLZeINI8qQ+9DITcARJs8nEoR8/EQb/7Pc=

 primary accounting 172.23.1.161 key cipher $c$3$R7ezYq72nLIYBFptqzwIa1afCLv4ULnGw2JlMPQ=

 accounting-on enable

 key authentication cipher $c$3$u7pxZdMsAnEnARvOtlfA9qXCM27V6E7DwbrYYmw=

 key accounting cipher $c$3$YmyC4B7N5MGERdyPTX1sBPQV3yGO1v9Jb35NW+k=

 user-name-format keep-original

 nas-ip 192.168.110.2

 attribute 30 format apmac-ssid delimiter colon

#

radius dynamic-author server

 client ip 172.23.1.161 key cipher $c$3$GhGoXHKL4EsMz2dV9MmGjyBqmSpmNHZdGZ5QR8E=

#

domain atlg-domain

 authentication default radius-scheme atlg-radius

 authorization default radius-scheme atlg-radius

 accounting default radius-scheme atlg-radius

#

portal free-rule 1 destination ip any udp 53

 portal free-rule 1 description dns

 portal free-rule 2 source ip any udp 53

 portal free-rule 2 description dns

 portal free-rule 3 source ip 103.13.75.198 255.255.255.255

 portal free-rule 3 description portal

 portal free-rule 4 destination ip 103.13.75.198 255.255.255.255

 portal free-rule 4 description portal

#

portal web-server "ATLG Apollo"

 url https://eaziwi5.attrelogix.com:8443/cp/attrelogix/h3c/

 server-type cmcc

 url-parameter mac source-mac

 url-parameter ssid value AttreLogix-WiFi-Staging

 url-parameter url original-url

 url-parameter wlanuserip source-address

#

After the configuration is complete, the terminal can implement portal authentication.

display portal user all verbose

Total portal users: 1

Basic:

  AP name: 8465-698d-f490

  Radio ID: 3

  SSID: AttreLogix-WiFi-Staging

  Current IP address: 192.168.110.11

  Original IP address: 192.168.110.11

  Username: anonymous

  User ID: 0x10000002

  Access interface: WLAN-BSS1/0/5

  Service-VLAN/Customer-VLAN: 1/-

  MAC address: 727b-1e75-0799

  Authentication type: Normal

  Domain name: atlg-domain

  VPN instance: N/A

  Status: Online

  Portal server: ATLG Apollo

  Vendor: N/A

  Portal authentication method: Direct

AAA:

  Realtime accounting interval: 720s, retry times: 5

  Idle cut: 600 sec, 10240 bytes

  Session duration: 600 sec, remaining: 544 sec

  Remaining traffic: N/A

  Login time: 2023-04-06 04:38:53 UTC

  Online time(hh:mm:ss): 00:00:56

  DHCP IP pool: N/A

  Web URL: N/A

ACL&QoS&Multicast:

  Inbound CAR: CIR 10485760 bps PIR 10485760 bps

               CBS N/A (active, AAA)

  Outbound CAR: CIR 10485760 bps PIR 10485760 bps

                CBS N/A (active, AAA)

  ACL number/name: N/A

  User profile: N/A

  Session group profile: N/A

  Max multicast addresses: 4

Flow statistic:

  Uplink   packets/bytes: 212/47286

  Downlink packets/bytes: 204/97885

Traffic average rate:

  Uplink   rate: 0 bytes/s

  Downlink rate: 0 bytes/s
