Network Topology

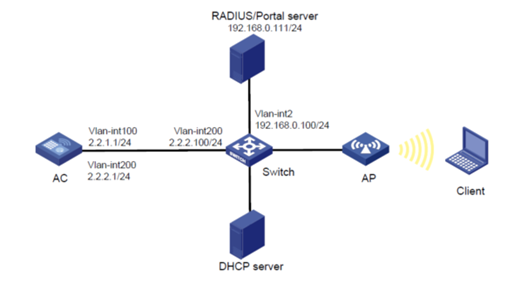

The following shows the networking diagram,
Problem Description
After configuring the portal authentication for users, it is not effective and users can access the network without authentication when connecting to the wireless network.
Process Analysis
Collect debugging and view configurations.
|
wlan service-template yqedu ssid xxx portal enable method direct portal domain dm portal bas-ip 10.192.192.254 portal apply web-server web portal apply mac-trigger-server mac service-template enable
radius scheme rs primary authentication 117.106.7.15 primary accounting 117.106.7.15 key authentication cipher $c$3$Oe+mxsMkFdWIWIk+wfIyzu1wK5KydQfO key accounting cipher $c$3$hHtNxhw8+ccGWEU2BKfyxXy+FqmSsJT7 user-name-format without-domain nas-ip 10.192.192.254 # domain system # domain dm authorization-attribute idle-cut 20 1024000 authentication portal radius-scheme rs authorization portal radius-scheme rs accounting portal radius-scheme rs
|
|
portal host-check enable portal free-rule 0 source interface GigabitEthernet1/0/7 portal free-rule 5 source ip any destination ip 1.1.1.1 255.255.255.255 portal free-rule 10 source ip any destination ip 2.2.2.2 255.255.255.255
portal free-rule 15 source ip any destination ip 114.114.114.114 255.255.255.255 # portal web-server yqedu-web url http://1.1.1.1:8080/portal server-type cmcc url-parameter ssid ssid url-parameter wlanacname value AC url-parameter wlanuserip source-address
portal server yqedu ip 1.1.1.1 key cipher $c$3$z6O9logiCyo95DUxcRBaQ5ssFHpCQSG7 server-type cmcc
wlan ap-group default-group vlan 1 ap-model WTU430-EI radio 1 max-power 19 radio enable ldpc enable option keep-active enable option client fast-forwarding enable level 3 radio 2
|
It has been found that there is a configuration option client fast-forwarding enable level 3 under the AP group. Enabling this feature allows the AP to directly forward wireless data packets to wireless clients without any additional processing (such as verification or statistics) to improve processing performance. Therefore, the device does not intercept user traffic and allows it to pass through, which means users can access the network without authentication from the terminal side.
Solution
Removing the option client fast-forwarding enable level 3 command resolves this issue.
