Network Topology
irrelevant
Problem Description

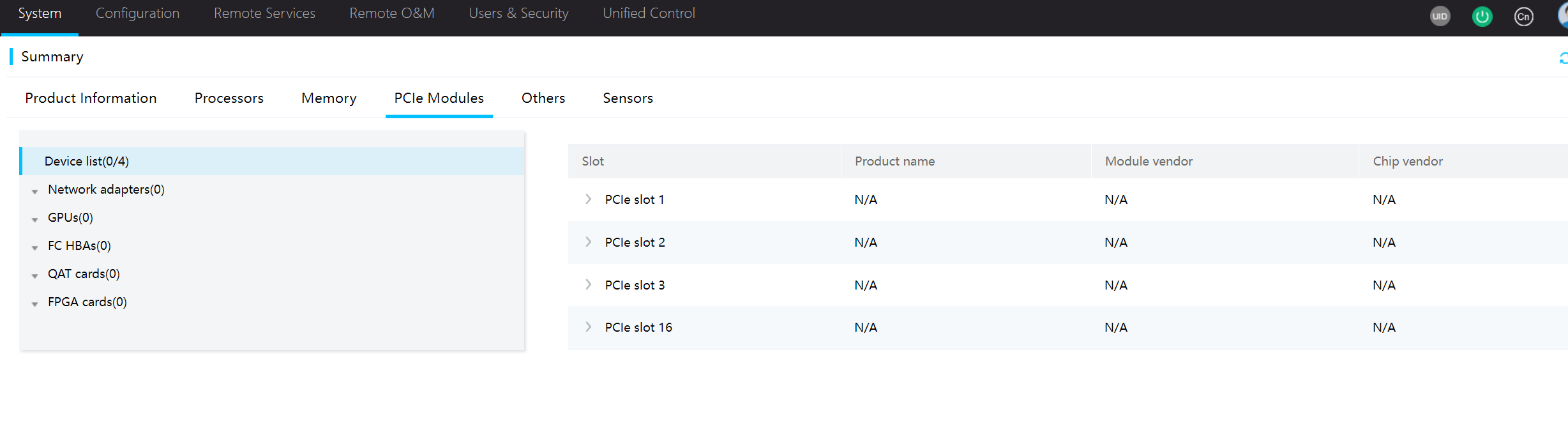

The NIC is not displayed on the HDM after nvme raid is configured
Process Analysis
Because VROC is used to configure NVME arrays, the VMD function must be enabled for each NVME slot. The VMD is enabled in all slots, including the NIC. As a result, the NIC cannot be used properly
Solution
Enable the VMD function only for the slot whose number is more than 100 for VROC RAID configuration of NVME.
Disable the VMD function of the other pcie slots.
Appendix server nvme drives number on hdm & bios

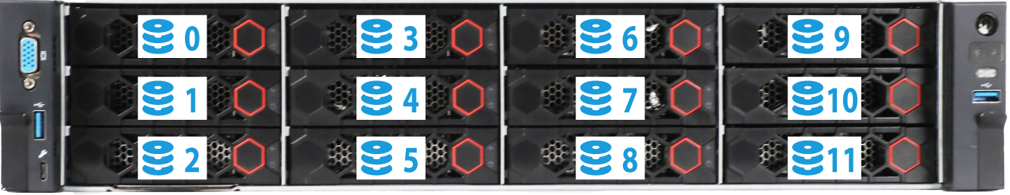

(1)R4900 G5 12LFF
| Silkscreen of disk slot number | Physical slot ID of the hard disk on the HDM | Disk slot ID in an HDM event log | PCIe slot ID of an NVMe disk on the HDM interface | PCIe slot ID of the NVMe disk on the BIOS interface |
| 0 | Front 0 | Disk_F0_Status | Slot 100 | Slot 100 |
| 1 | Front 1 | Disk_F1_Status | Slot 101 | Slot 101 |
| 2 | Front 2 | Disk_F2_Status | Slot 102 | Slot 102 |
| 3 | Front 3 | Disk_F3_Status | Slot 103 | Slot 103 |
| 4 | Front 4 | Disk_F4_Status | Slot 104 | Slot 104 |
| 5 | Front 5 | Disk_F5_Status | Slot 105 | Slot 105 |
| 6 | Front 6 | Disk_F6_Status | Slot 106 | Slot 106 |
| 7 | Front 7 | Disk_F7_Status | Slot 107 | Slot 107 |
| 8 | Front 8 | Disk_F8_Status | Slot 108 | Slot 108 |
| 9 | Front 9 | Disk_F9_Status | Slot 109 | Slot 109 |
| 10 | Front 10 | Disk_F10_Status | Slot 110 | Slot 110 |
| 11 | Front 11 | Disk_F11_Status | Slot 111 | Slot 111 |

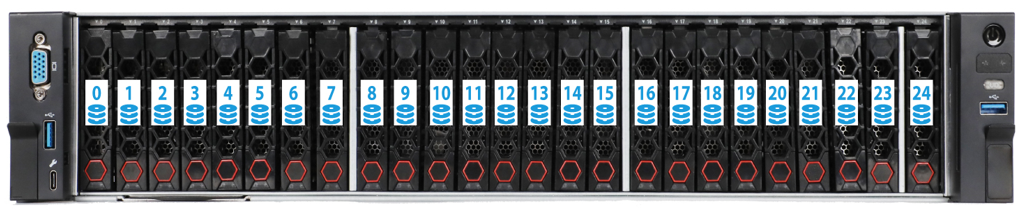

(2) R4900G5 25SFF/8SFF
| Silkscreen of disk slot number | Physical slot ID of the hard disk on the HDM | Disk slot ID in an HDM event log | PCIe slot ID of an NVMe disk on the HDM interface | PCIe slot ID of the NVMe disk on the BIOS interface |
| 0 | Front 0 | Disk_F0_Status | Slot 100 | Slot 100 |
| 1 | Front 1 | Disk_F1_Status | Slot 101 | Slot 101 |
| 2 | Front 2 | Disk_F2_Status | Slot 102 | Slot 102 |
| 3 | Front 3 | Disk_F3_Status | Slot 103 | Slot 103 |
| 4 | Front 4 | Disk_F4_Status | Slot 104 | Slot 104 |
| 5 | Front 5 | Disk_F5_Status | Slot 105 | Slot 105 |
| 6 | Front 6 | Disk_F6_Status | Slot 106 | Slot 106 |
| 7 | Front 7 | Disk_F7_Status | Slot 107 | Slot 107 |
| 8 | Front 8 | Disk_F8_Status | Slot 108 | Slot 108 |
| 9 | Front 9 | Disk_F9_Status | Slot 109 | Slot 109 |
| 10 | Front 10 | Disk_F10_Status | Slot 110 | Slot 110 |
| 11 | Front 11 | Disk_F11_Status | Slot 111 | Slot 111 |
| 12 | Front 12 | Disk_F12_Status | Slot 112 | Slot 112 |
| 13 | Front 13 | Disk_F13_Status | Slot 113 | Slot 113 |
| 14 | Front 14 | Disk_F14_Status | Slot 114 | Slot 114 |
| 15 | Front 15 | Disk_F15_Status | Slot 115 | Slot 115 |
| 16 | Front 16 | Disk_F16_Status | Slot 116 | Slot 116 |
| 17 | Front 17 | Disk_F17_Status | Slot 117 | Slot 117 |
| 18 | Front 18 | Disk_F18_Status | Slot 118 | Slot 118 |
| 19 | Front 19 | Disk_F19_Status | Slot 119 | Slot 119 |
| 20 | Front 20 | Disk_F20_Status | Slot 120 | Slot 120 |
| 21 | Front 21 | Disk_F21_Status | Slot 121 | Slot 121 |
| 22 | Front 22 | Disk_F22_Status | Slot 122 | Slot 122 |
| 23 | Front 23 | Disk_F23_Status | Slot 123 | Slot 123 |
| 24 | Front 24 | Disk_F24_Status | Slot 124 | Slot 124 |
