The local IP of the cloud AP on the cloudnet shows 169.254.158.0.
- 0 Followed
- 0Collected ，3114Browsed
Network Topology
AP------Cloudnet
Problem Description

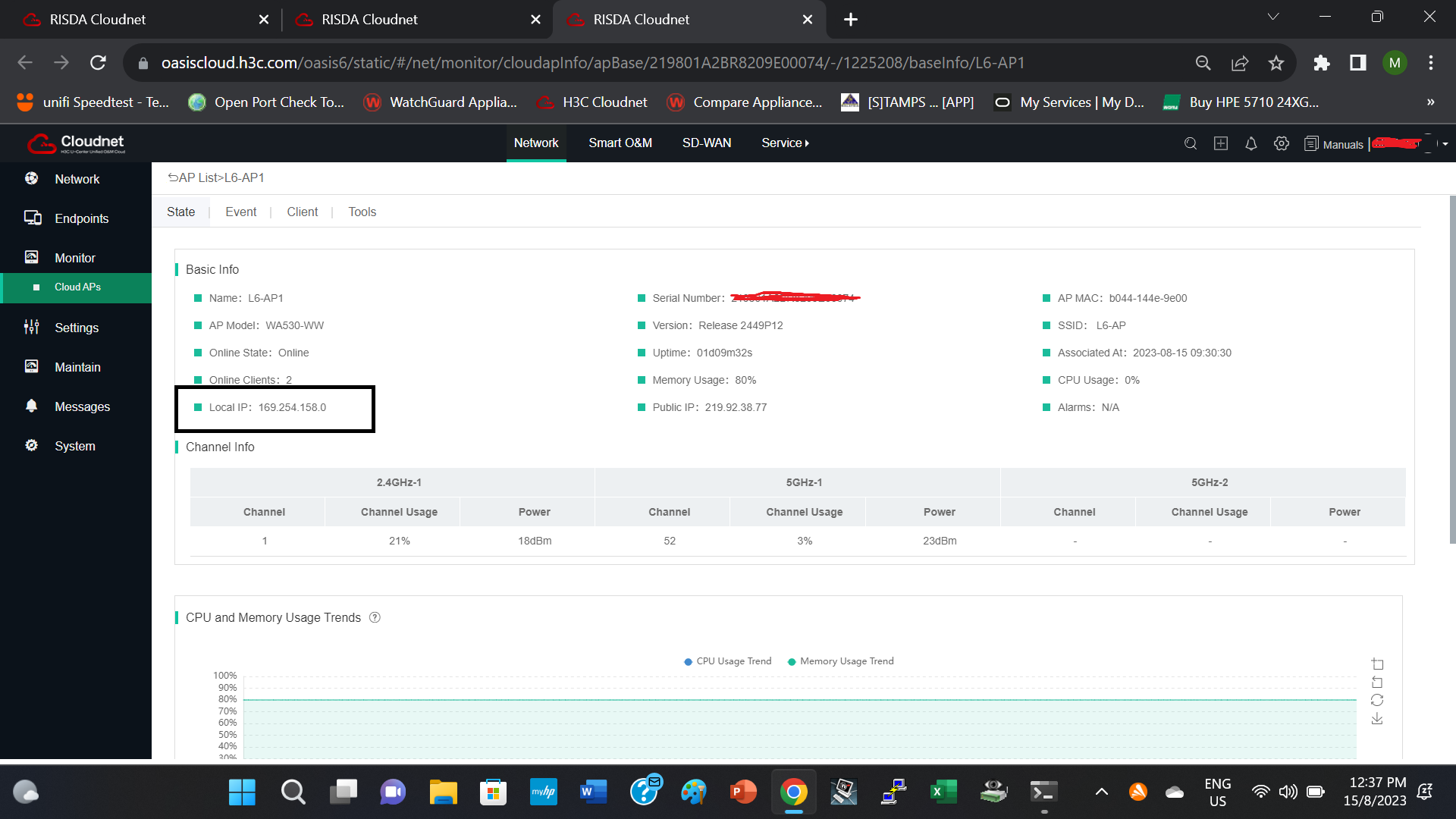

The local IP of the cloud AP on the cloudnet shows 169.254.158.0.
Process Analysis
The AP can only send and receive the protocal message via interface vlan 1. If the management IP is not on the vlan 1, and there is no IP on the interface vlan 1. The local IP would be showed as 169.254.158.0.
Solution
Since the WA530-WW can only sync the IP on the interface vlan 1 as the local IP. So in following two Scenario, we suggest the workround for them.
>For service Vlan and Mgmt VLAN is the same (VLAN6).
Workround:

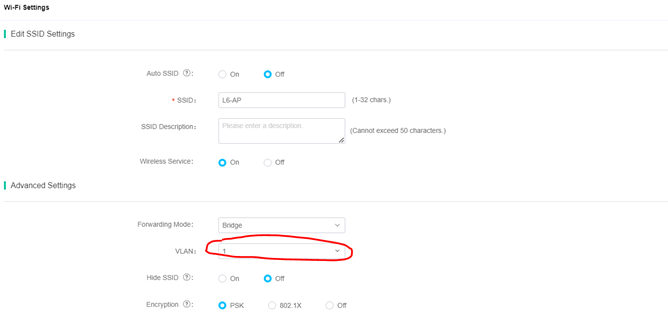

Set the pvid of the port of access switch as vlan 6. And set the vlan as vlan 1 on the wifi-setting on the cloudnet for the AP.
>But for Service VLAN(etc VLAN 15) and Mgmt Vlan (VLAN6) are different.
Workround:

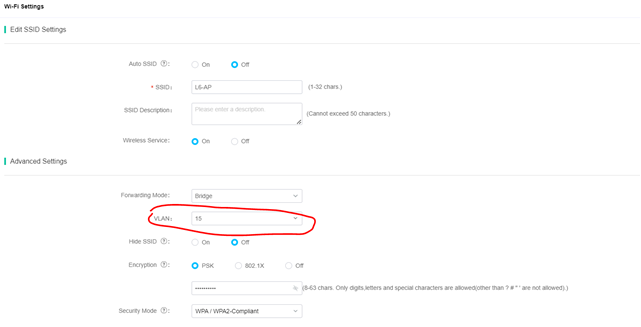

Set the pvid of the port of access switch as vlan 6. And set the vlan as vlan 15 on the wifi-setting on the cloudnet for the AP.
