★ How to register for a wireless AP license

2023-12-21 09:33:23 Published
  • 0 Followed
  • 1Collected ,2137Browsed

Network Topology

none


Problem Description

How to register for a wireless AP license


Process Analysis

First, obtain the device file of AC, then bind the device file and license authorization code by using the license website to generate the .ak file, and upload it to the AC flash for installation.


Solution

1. Obtain the device .did file and download it via FTP

dis license device-id slot 1

SN: 210235A3MMB193000003

SN CHECK_SUM: F286ADFF

Device ID: cfa0:/license/210235A3MMB193000003.did

cd license

dir

Directory of cfa0:/license

2 -rw- 1099 Dec 03 2022 16:08:34 210235a3mmb193000003.did

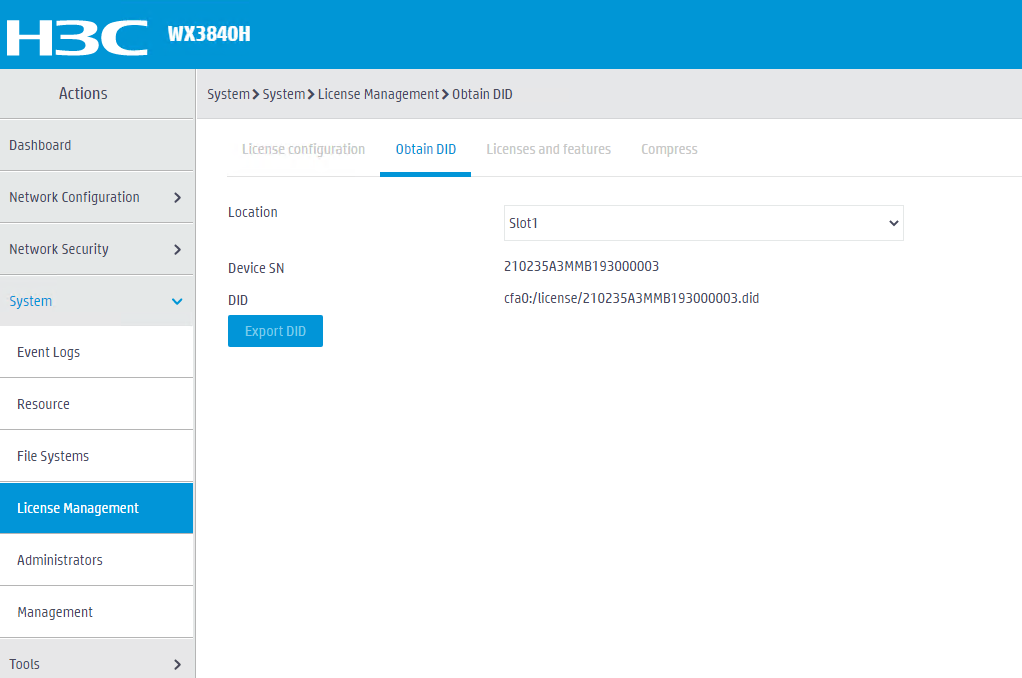

Or you can download the device file in the AC GUI webpage.


2. Gnerating an activation file on H3C License Management Platform.

Open a Web browser and access H3C License Management Platform at https://new-licensing.h3c.com/website/anonymous/navIndex/en-US/activate/input-license.

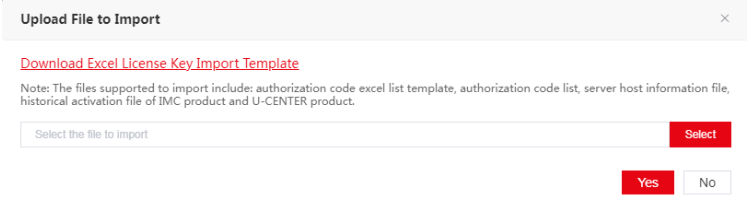

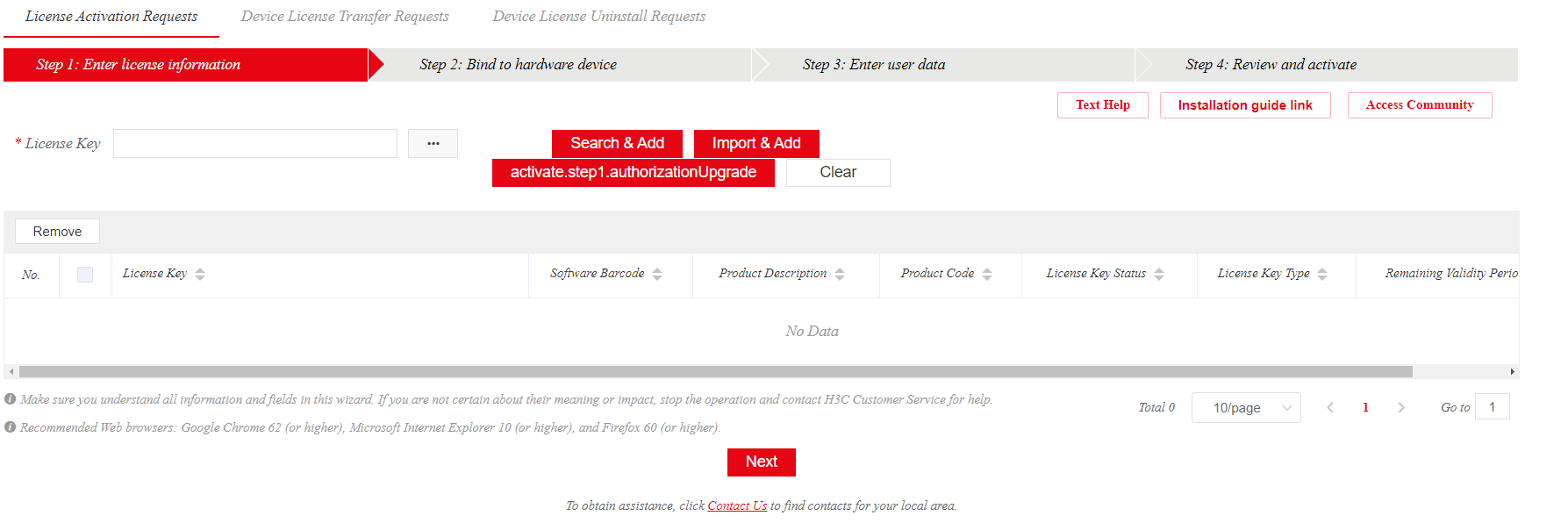

 add license keys one by one or import license keys file in bulk

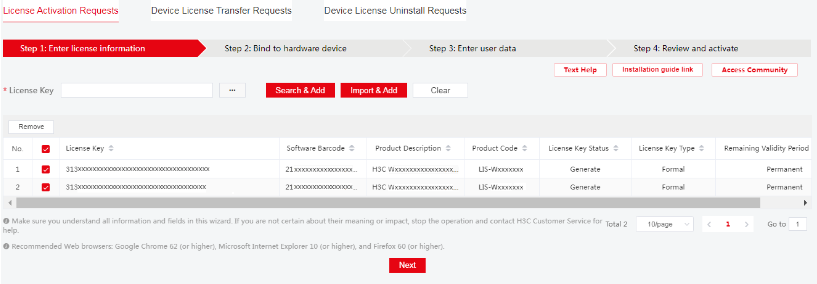

Select license keys to be activated, and then click Next

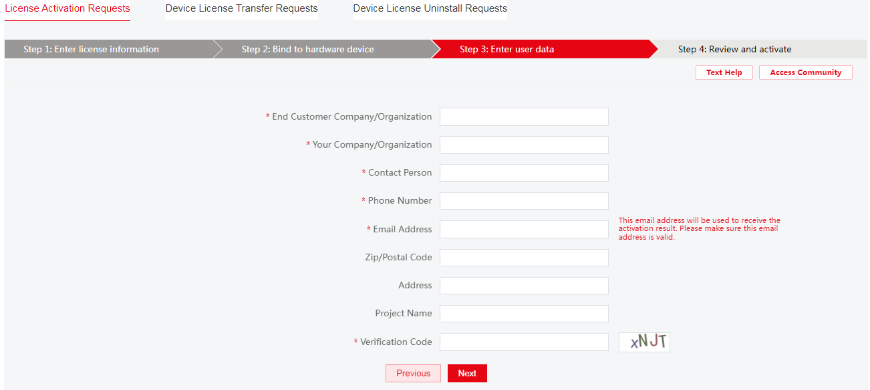

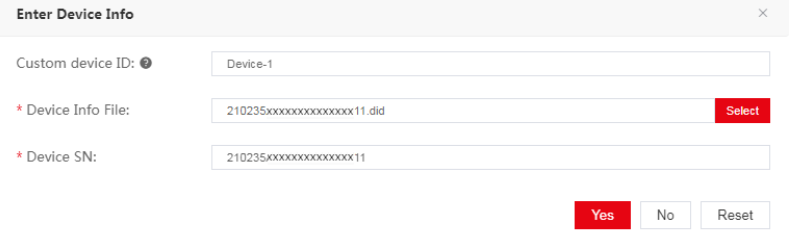

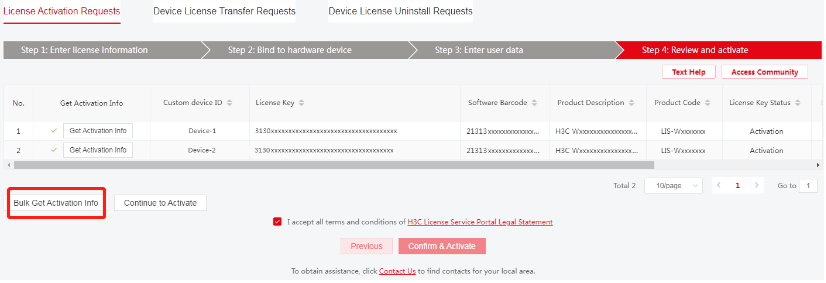

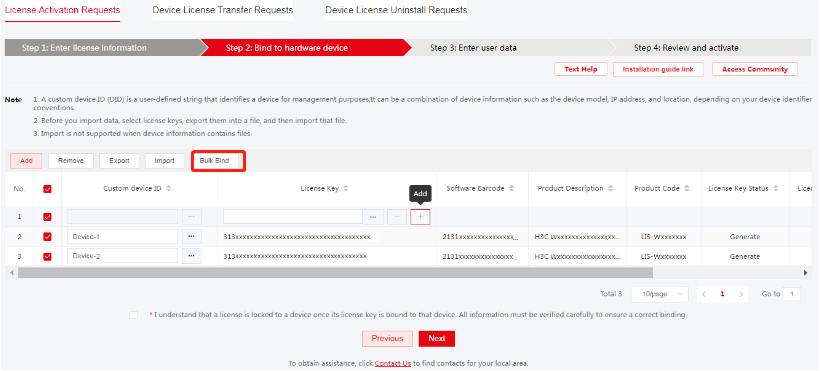

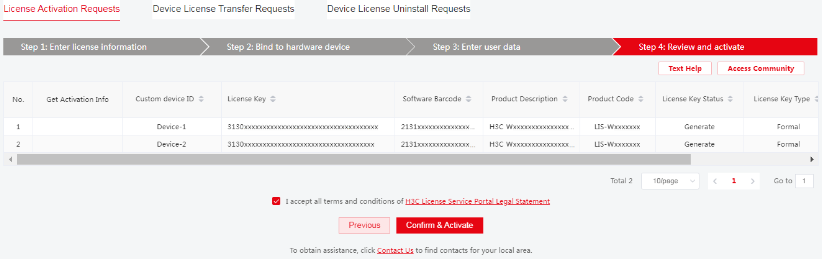

Binding license keys to devices







3. Installing an activation file on the device and check the results.

upload the .ak activation file to AC flash and execute command to install it:

[WX3840H]license activation-file install slot1#cfa0:/210235A3MMB1930000032021120722573438994.ak slot 1

[WX3840H]dis license

 Slot 1: cfa0:/license/210235A3MMB1930000032021120722573438994.ak

Feature: APMGR

Product Description: Enhanced Access Controller License,16 APs,for Verticals,for V7

Registered at: 2021-12-07 22:55:05

License Type: Permanent

Current State: Uninstalled

Uninstall Key: qTAd-xG$L-r3#@-z3xM-utTZ-S#aF-%a@m-t:kD-201A6B27

Uninstall Date: 2023-12-18 09:35:52
