Problem Description
The customer needs to monitor the number of wireless 2.4G and 5G terminal associations, but there is no corresponding mib value in our mib node table.
Process Analysis
You can use ap-based statistics and current terminal ap information to display nodes. After combining the two, the number of terminals associated with 2.4G and 5G can be counted.
AP based statistics:
.1.3.6.1.4.1.25506.2.75.2.1.2.1.7
hh3cDot11CurrAPStationAssocCount OBJECT-TYPE
-- FROM HH3C-DOT11-APMT-MIB
SYNTAX Integer32
MAX-ACCESS read-only
STATUS current
DESCRIPTION "Represents the total number of stations which are associating
to AP."
Display node of current terminal connection ap information:
.1.3.6.1.4.1.25506.2.75.3.1.2.1
hh3cDot11StationAPRelationEntry OBJECT-TYPE
-- FROM HH3C-DOT11-STATION-MIB
MAX-ACCESS not-accessible
STATUS current
INDEX { hh3cDot11StationMAC }
DESCRIPTION "Each entry contains relation-ship information
with AP, Radio and WLANID of each station."
.1.3.6.1.4.1.25506.2.75.3.1.2.1.2
hh3cDot11CurrRadioID OBJECT-TYPE
-- FROM HH3C-DOT11-STATION-MIB
-- TEXTUAL CONVENTION Hh3cDot11RadioScopeType
SYNTAX Integer32
MAX-ACCESS read-only
STATUS current
DESCRIPTION "Represents each radio."
Solution

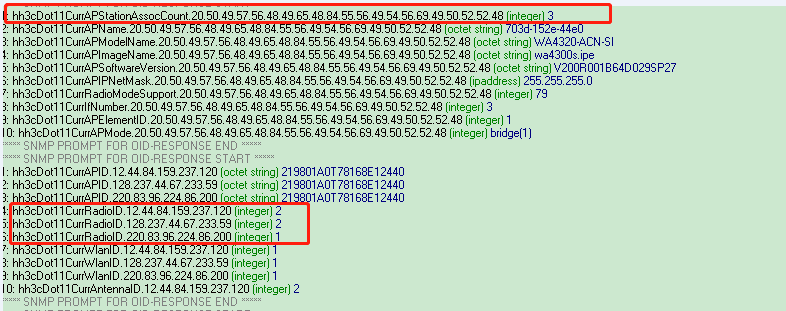

As shown in FIG:
There are a total of three terminals associated with the AP, two for 2.4G and one for 5G. The current total number of associated terminals is obtained through the 1.3.6.1.4.1.25506.2.75.2.1.2.1.7 node getbulk, and the corresponding ap and corresponding radio associated with the terminal are obtained through the 1.3.6.1.4.1.25506.2.75.3.1.2.1.2 node.
