AC added to WBC displays offline problem handling experience case

Not involving

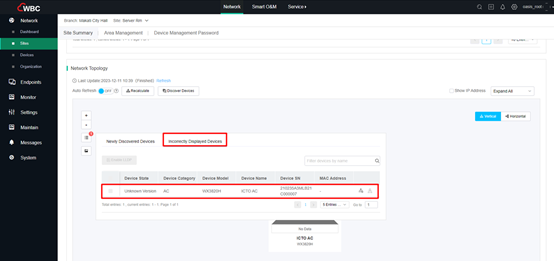

When adding AC in WBC, Device State shows Unknown Version, and AC is offline:

The Oasis platform installed on a WBC multiservice access controller is a local edition for the H3C Cloudnet platform, allowing administrators to monitor the network and operate and maintain devices from the platform. You can manage your devices from the Oasis platform as long as you register the devices on the platform.

Therefore, you must first ensure that the address between the device and WBC is reachable, and then configure the corresponding cloud server configuration to connect.

Adding devices to the WBC can be configured as follows:

1. Add a device from the CLI

# Specify the Oasis platform domain name as oasisauth.h3c.com.

system-view

[Sysname] cloud-management server domain oasisauth.h3c.com

# Create a host name to IPv4 address mapping in the static resolution table.

[Sysname] ip host oasisauth.h3c.com 192.168.0.101

# Display the Oasis platform connection state. If the connection is in Established state, the cloud connection is established successfully.

[Sysname] display cloud-management state

Cloud connection state                      : Established

Device state                                : Request_success

Cloud server address                        : 192.168.0.101

Cloud server domain name                    : oasisauth.h3c.com

Cloud connection mode                       : Https

Cloud server port                           : 19443

Connected at                                : Wed May 26 17:10:11 2021

Duration                                    : 00d 00h 01m 54s

Process state                               : Message received

Failure reason                              : N/A

Last down reason                            : Device or process rebooted (Detail

s: N/A)

Last down at                                : Wed May 26 15:30:37 2021

Last report failure reason                  : N/A

Last report failure at                      : N/A

Dropped packets after reaching buffer limit : 0

Total dropped packets                       : 0

Last report incomplete reason               : N/A

Last report incomplete at                   : N/A

Buffer full count                           : 0

2. Add a device from the Oasis platform

A.     From the left navigation pane, select Network > Devices.

B.     Select a branch and a site.

C.     Click Add.

To obtain the serial number of the device, see the label on the device, or access the device form the console port, and then execute the display device manuinfo command.

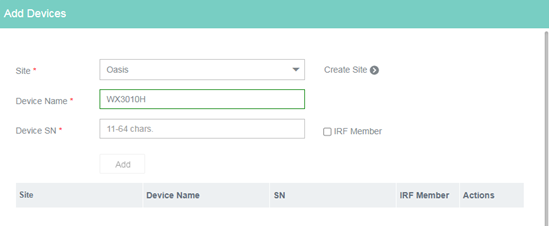

Figure 1 Adding a device
