★ Experience case of accessing WA6120X without console

Not involving

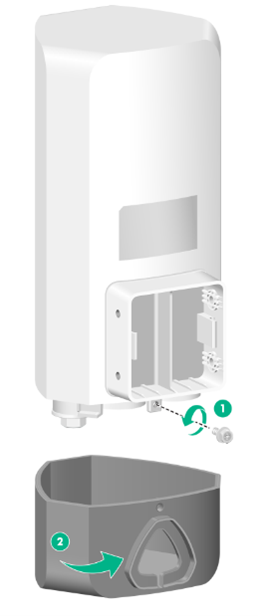

There is no console port or reset button on the WA6120X panel and casing. Customers cannot access the CLI and there is no way to perform the reset operation.

Since WA6120X is an outdoor model, the design of the console port and reset button is cancelled. The device provides two login methods, which need to be operated by connecting to the management SSID. For specific methods, see the solution.

Method 1: Logging in to the AP through Telnet

By default, HTTP and HTTPS are enabled and the following login information is defined for your login:

·     Username—admin.

·     Password—h3capadmin.

When the AP operates in cloud mode, only wireless connections are available.

Some Intel wireless adapters do not support 802.11ax. For clients to detect Wi-Fi 6 networks, upgrade the driver for the wireless adapter to the most recent version. For more information, see the official statement of Intel.

To log in to the AP through a wireless connection:

1.     Enable WLAN on the configuration terminal and access WLAN H3C_xxxxxx, where xxxxxx is the last six bits of the AP"s MAC address.

2.     Enter telnet wlan.h3c.com from the CLI of the terminal.

3.     Enter the default username and password.

Method 2: Logging in from the Web interface

By default, HTTP and HTTPS are enabled and the following login information is defined for your login:

·     Username—admin.

·     Password—h3capadmin.

When the AP operates in cloud mode, only wireless connections are available. The configuration terminal must be enabled with DHCP.

Some Intel wireless adapters do not support 802.11ax. For clients to detect Wi-Fi 6 networks, upgrade the driver for the wireless adapter to the most recent version. For more information, see the official statement of Intel.

To log in to the AP through a wireless connection:

1.         Enable WLAN on the configuration terminal and access WLAN H3C_xxxxxx, where xxxxxx is the last six bits of the AP"s MAC address.

2.     Visit http://wlan.h3c.com from a browser, and then press Enter.

3.     Enter the default username and password. For security purposes, change the password as prompted after you access the Web interface, and then click OK

Related configuration:

#

wlan service-template 16

 ssid H3C_74DBA0

 vlan 4094

 service-template enable

#

interface Vlan-interface4094

 ip address 10.40.94.1 255.255.255.0

 packet-filter 3999 inbound

 packet-filter 3999 outbound

 dhcp server apply ip-pool 4094

#

 dns proxy enable

 ip host gwstart.h3c.com 10.40.94.1

 ip host myap.h3c.com 10.40.94.1

 ip host quicknet.h3c.com 10.40.94.1

 ip host wlan.h3c.com 10.40.94.1

 dns fast-reply enable

#

dhcp server ip-pool 4094

 gateway-list 10.40.94.1

 network 10.40.94.0 mask 255.255.255.0

 dns-list 10.40.94.1

#
