F1000 protect virtual machine suffers from SYN flood attack

VM ----core ------router----internet

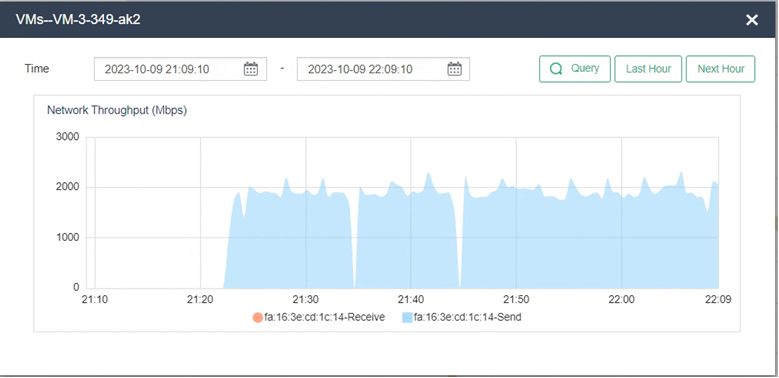

Customer found VM send huge traffic to internet over the bandwidth to ISP, then leads to congestion.

Upon our inspection, the UIS virtualization platform used by the client is not faulty, but there is abnormal traffic on the VM.

So we capture packet on the relevant port to check the traffic detail.

We found there is too much SYN flood traffic.

Due to the fact that the IP address of the attacker is different each time, it is not possible to protect based on the source IP. We have decided to use the SYN flood suppression function of the F1000 firewall.

#

 syn-flood detect non-specific

 syn-flood action logging drop

 syn-flood threshold 5000

 syn-flood source-threshold 5000

#

The value 5000 can be adjusted to 500 or less, if it still has too much traffic about SYN.

Configure SYN flood suppression. We finally set the threshold at 500，and the issue was solved.

#

 syn-flood detect non-specific

 syn-flood action logging drop

 syn-flood threshold 500

 syn-flood source-threshold 500

#
