How to build a Log Server for AC

Null

The logs stored on the AC are limited, how to build a log server on the AC to output to a specific host

There are two ways to build a log server for AC, if the device supports Cloudnet, it can be operated directly on Cloudnet. The second is to build through the 3CD software (If using a server for the host, window system is available)

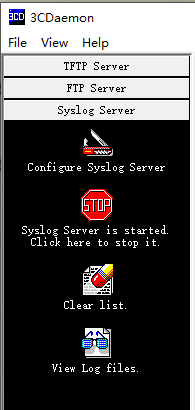

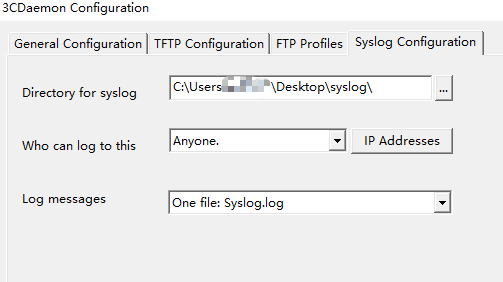

1. Install the 3CD software, click syslog server - Configure syslog server, set the file directory for syslog, and create a new document named syslog to save the log file.

2. Ensure that the host and AC are connected, and enter the command info-center loghost X.X.X.X (IP address of the host) on the AC

3. Click STOP and then click GO again to start monitoring. A .txt document is generated in the syslog folder, which means the build is successful.
