NAT log collection method on iMC platform
2024-07-01 14:01:46
Published
- 0 Followed
- 0Collected ，2401Browsed
Network Topology
IMC has installed the NAT component.
Problem Description
NAT front-end or back-end has issues
Process Analysis
NTA front-end display issues, the required logs to collect:
1. \iMC\unbam\log; 2. jserver's debug log.
NTA backend issues, the required logs to collect:
1. Process logs and receive logs Change the debug level method, and after the issue is resolved, change it back to INFO level.
windows:

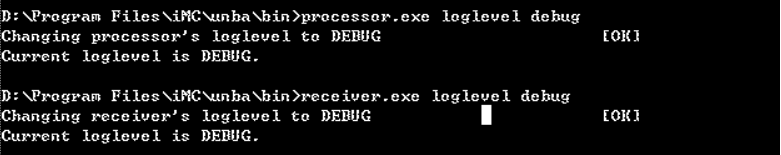

NTA/UBA backend log path: receiver.txt and processor.txt logs under iMC\unba\log.
Linux:

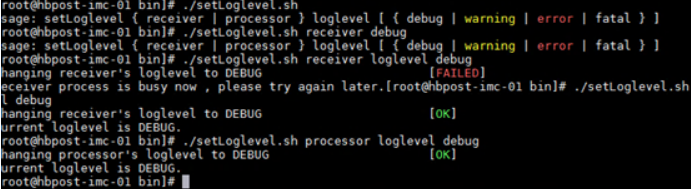

First, enter the iMC/unba/bin directory, and then execute the setLogLevel script.
2. Collect all files under iMC\unba\conf.
Solution
Collect log methods see problem description
