Cloud OS failed to create firewall service chain

CloudOS:E5138P01

ADDC Controller E0711

Single-lag firewall connect to the one of spine.

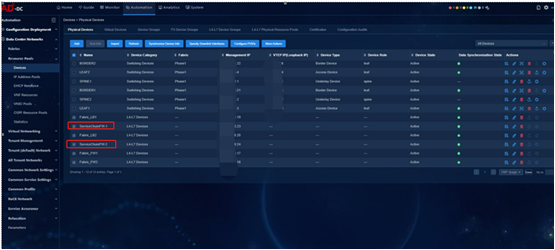

After manually managing the east-west service chain firewall on ADDC, creating a service chain on CloudOS cannot see this resource:

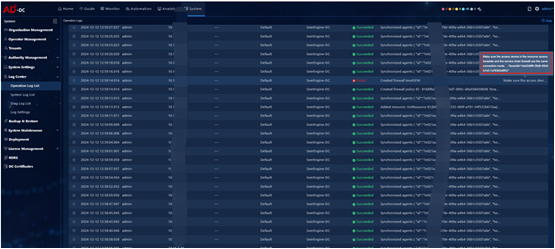

No error logs on ADDC:

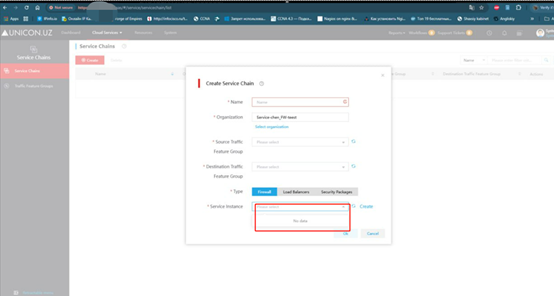

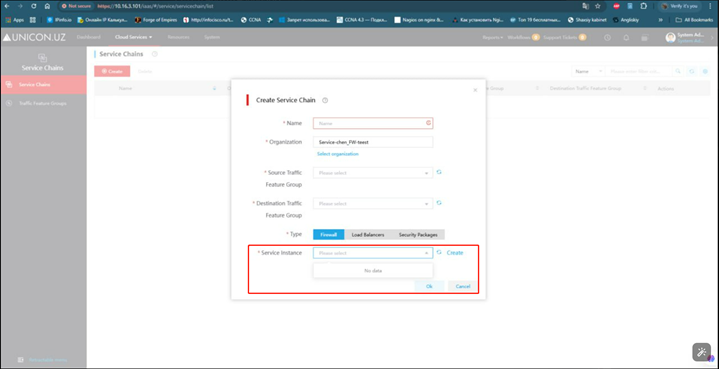

No service instance display:

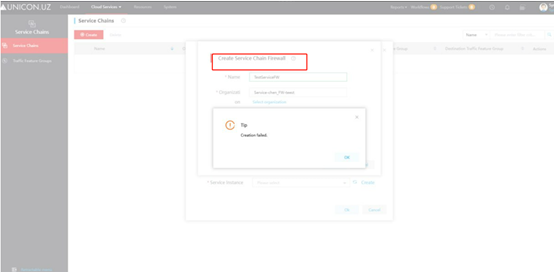

Failed to create firewall:

There are no errors reported in the operation log on ADDC, and the CloudOS operation log also shows a failure to create resources.

The service chain names on CloudOS and DC need to be consistent, otherwise they cannot be created.

After modify there is another error pop up.

Make sure the access device in the resource access template and the service chain firewall use the same connection mode.        -Tenant

The current CloudOS version when send the config to the addc about an east-west service chain, it defaults to sending a dual arm firewall configuration. When the actual environment firewall is a single arm side hung firewall, the error will be reported

Solution:

Directly configure it on the Addc controller or modify the environment to dual arm
