★ vFW filtering in UIS does not take effect
2025-03-27 11:06:37
Published
- 0 Followed
- 0Collected ，113Browsed
Network Topology
UIS Version: V8.0 (E0802P01H2)
Problem Description

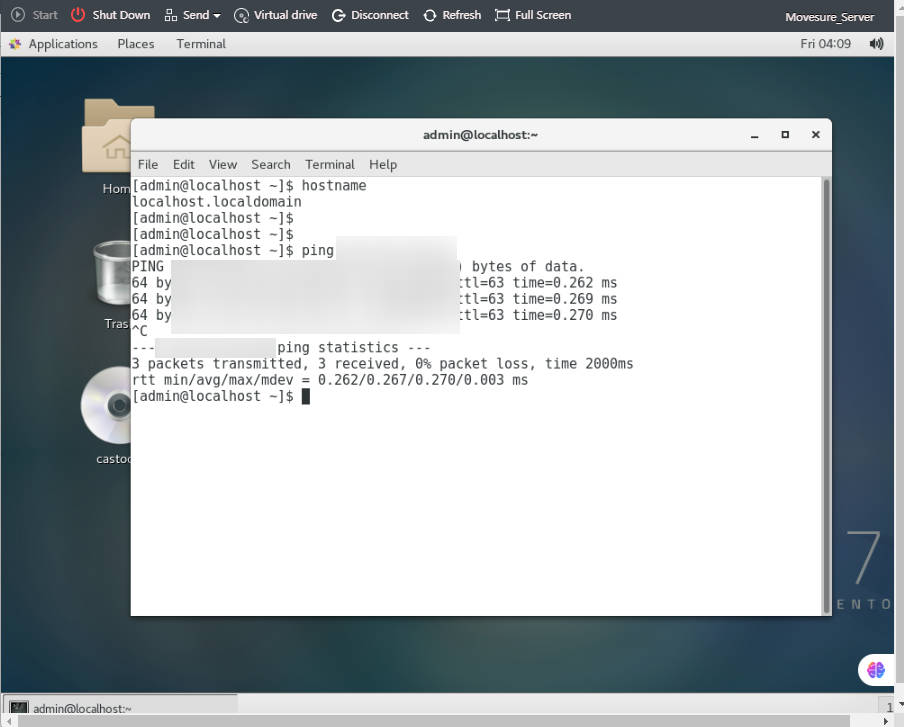

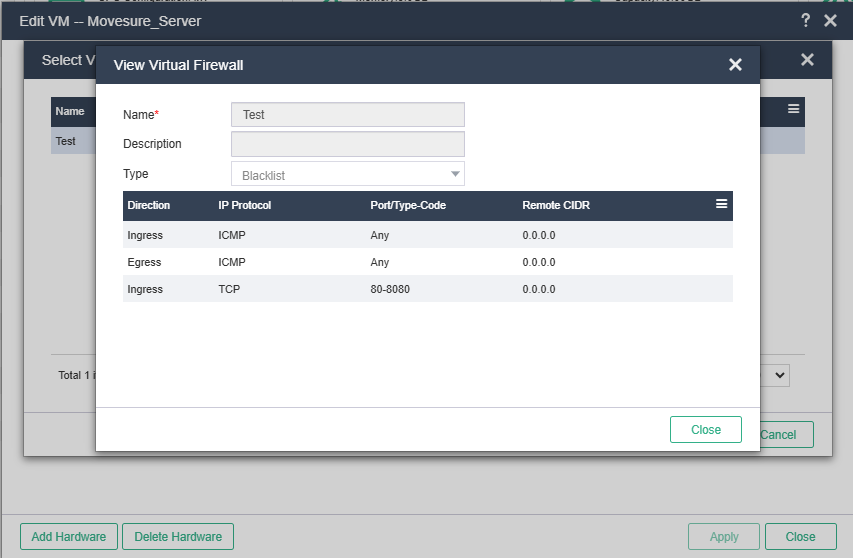

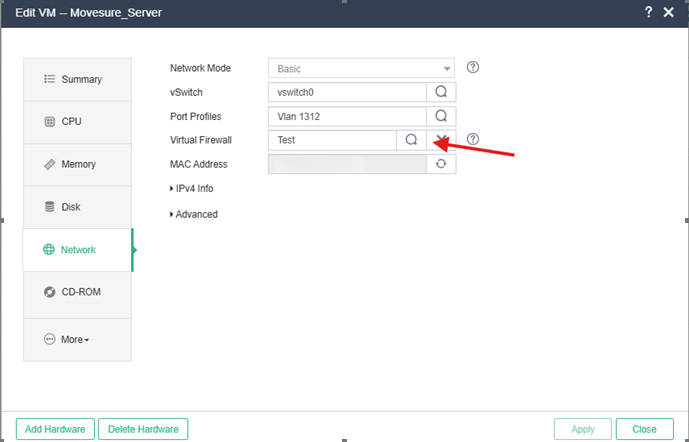

Added vFW to the VM and tested the policy of blocking all traffic, after applying it the test found that it was still able to ping other VMs.
Filtering policy for vFW is not in effect.
Process Analysis

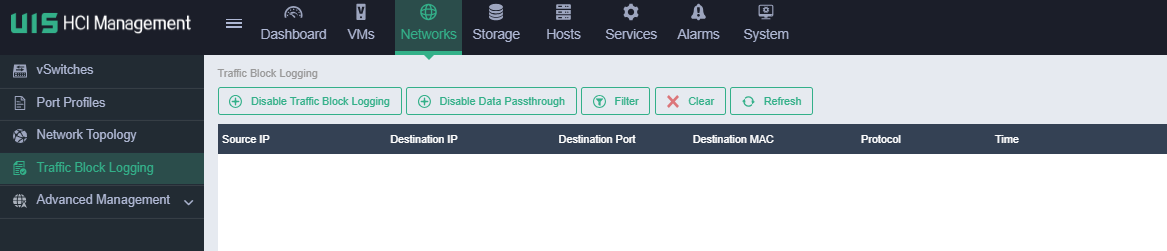

Check if the Data Passthrough feature is turned on, according to the user manual, if this feature is turned on, all traffic will be passthrough with a higher priority than the vFW's policy.
https://www.h3c.com/en/pub/Document_Center/2024/05/H3C_UMUG_E0802P01_5W118_WebHelp/default_auto.htm
Solution
After disable data passthrough feature, the policy for the vFW took effect successfully.
