Connectivity Issue in IKEv2 IPsec Tunnel with FortiGate Firewall

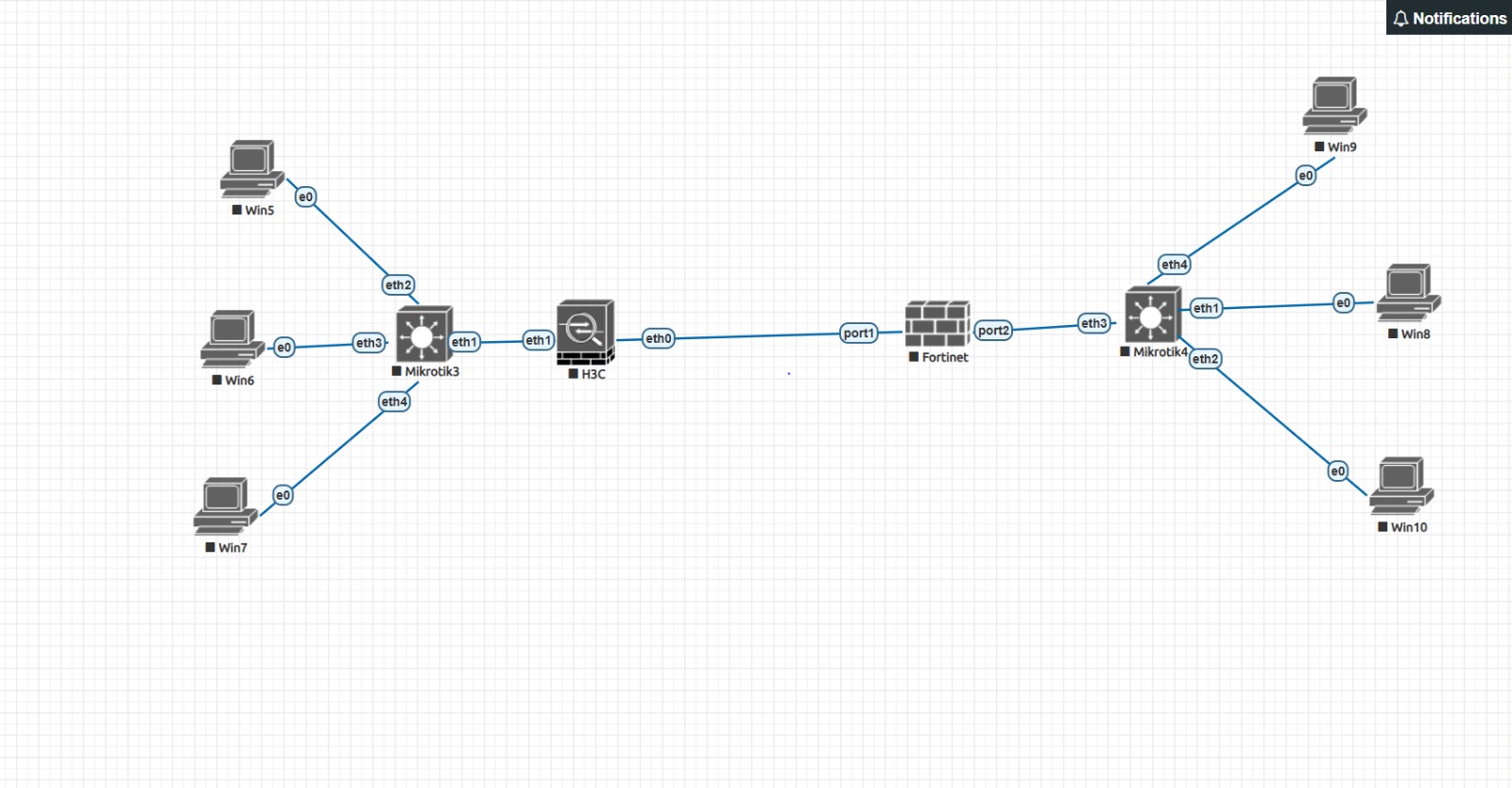

Topology

Problem Description

  The customer’s H3C SecPath F5000 has an IPsec VPN configured to a FortiGate firewall. Although both IKE phases (Phase-1 and Phase-2) are negotiated successfully, hosts on the local LAN cannot reach hosts on the remote LAN. Packet captures show outbound traffic leaving the H3C and reaching the FortiGate, but replies from the FortiGate are not received back at the H3C  ,

Troubleshooting

• IKE Phase-1 and Phase-2: UP

• Traffic capture on H3C: outbound packets reach FortiGate; responses not observed.

• Intermittent single-packet replies seen occasionally, otherwise zero replies.

Problem Root Cause

In general, more recent IPsec VPN encryption and authentication algorithms may not be supported by older NP processors. For example, NP4 network processors do not support SHA-256, SHA-384, and SHA-512. IPsec traffic with unsupported algorithms is not offloaded and instead is processed by the FortiGate CPU. In addition, this configuration may cause packet loss and other performance issues. If you experience packet loss or performance problems you should set the npu-offload option to disable. Future FortiOS versions should prevent selecting algorithms not supported by the hardware.

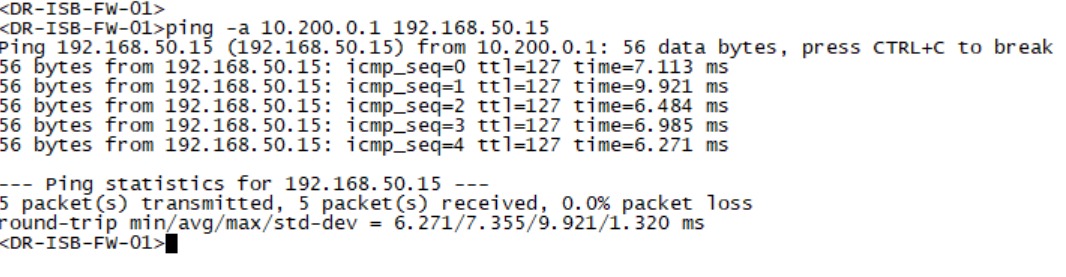

  The issue was traced to the NPU offload feature on the FortiGate. After disabling NPU offload, the traffic passed through the IPsec tunnel normally, and LAN-to-LAN communication was restored.

Use the following command to disable NP offloading for an interface-based IPsec VPN phase 1:

config vpn ipsec phase1-interface

edit phase-1-name

set npu-offload disable

end

Use the following command to disable NP offloading for a policy-based IPsec VPN phase 1:

config vpn ipsec phase1

edit phase-1-name

set npu-offload disable

end

The npu-offload option is enabled by default.
