★ No enough partiontion space for GFS cause ' configuration item parameter fail '

Normal topology for ADWAN Branch solution

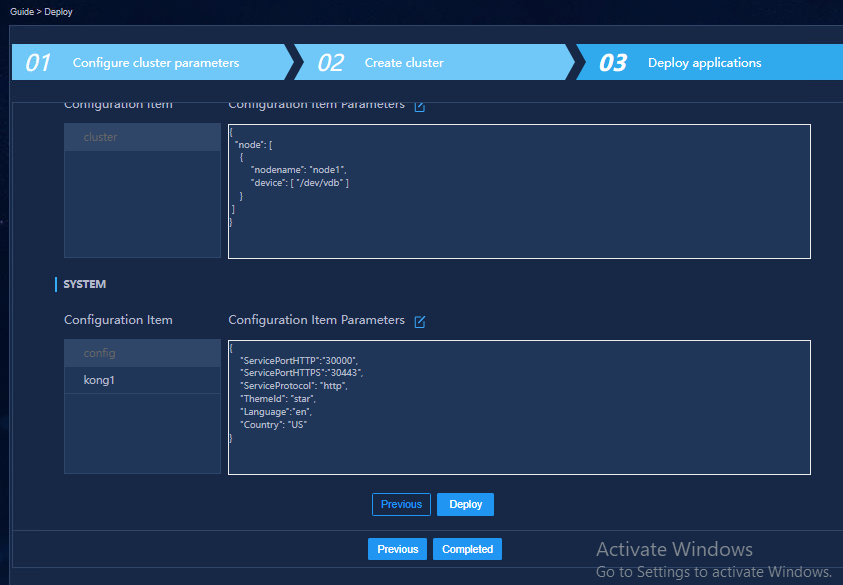

When install 3 basic components, kernel, GFS and portal, after configure GFS item parameter, it turns out error “Invalid configuration item parameters”

For GFS parameter, you need configure hostname and GFS partition size.

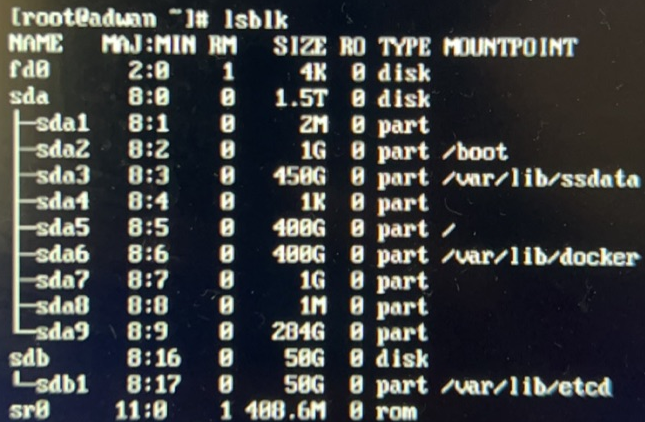

Execute command： lsblk

It shows there is no partition remained，and the host name is adwan, not “node1”.

1.    add a new partition for GFS

If the server has storage remained from other disk, you can add a new partition for GFS;

If the server does not have, add new disk then.

2.    Check OS host name

Execute command hostname ,the result is the full hostname

After these two parameter are configured correct, you can continue your next step configuration.
